Bar Code Equipment › Portable Bar code Printer › Zebra Portable Printer › Zebra QL 220 Plus

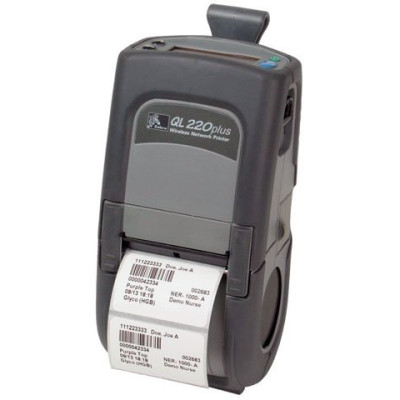

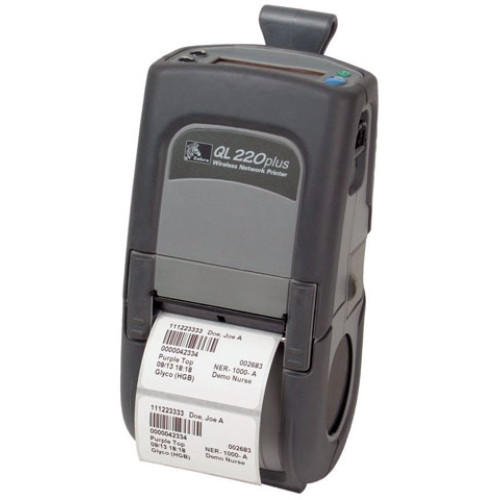

Zebra QL 220 Plus Portable Printer

At 1.04 lbs, the lightweight QL 220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL 220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL 220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Questions?

1-888-875-7170

Email We respond to every email

Fill out your contact information and a message and we'll get back to you.

To:

questions@barcodegiant.com

Name*:

Email*:

Phone:

Message*:

I live outside of USA/Canada

Spam protection*: Type "barcode"in the field below.

Zebra QL 220 Plus Details

• Print method: Direct thermal

• Rubber infused plastic over-mold design for tough conditions

• Battery monitoring via a battery low indicator light or gauge on the optional LCD

• Lithium ion battery

• “Clamshell” design and center locking media loading

• Backward compatible with Encore and Cameo media and cables

• Label Vista and Windows printer drivers

• Quick Flip Peel and Present Mode

• 32-bit High Speed Processor

• USB 2.0 Full Speed Support


Resolution

203 dpi (8 dots/mm)

Memory

• 8 MB SRAM

• 4 MB Flash

Print width

1.89" (48 mm) maximum

Print length

32" (813 mm) maximum

Print speed

3" (76 mm)/sec

Media sensors

Reflective
Transmissive

Maximum label and liner width

.63" (16 mm) to 2.18" (55 mm)

Maximum roll diameter

2.2" (55.9 mm)

Core diameter

Interchangeable .75" (19.1 mm) or 1.38" (34.9 mm)

Media thickness

Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil

Media types

roll-fed, die-cut, linerless, receipt

Operating temperature

DT: Operating temperature 5° F (-15° C) to 122° F (50° C) Direct thermal

Storage temperatures

-13° F (-25° C) to 158° F (70° C)

Operating humidity

10-80% non-condensing

Storage humidity

10-90% non-condensing

Electrical

External charger options

Lithium Ion

2100 Ah

7.2 V

Agency approvals

• FCC and CE Class B compliance

• Design certified by CSA

• CB Scheme report

• NOM certified

• C-Tick clearance

Width

3.57" (90.7 mm)

Height

7.15" (181.6 mm)

Depth

2.96" (75.2 mm)

Weight

1.04 lbs (0.47 kg)

Options

• LCD control panel

• 802.11b wireless local area network (WLAN) or Bluetooth

• Peel and present mode

• Patented media width auto-sensing feature

• Linerless printing

• Spare Lithium Ion battery packs

• Battery chargers

• International character sets

• Label Vista software for receipt and label design and font creation

• Wireless Security Support (ie. VPN or WPA)

Communication and Interface Capabilities

• RS-232 8PIN DIN connector serial port

• USB 2.0 Full Speed Support

• Selectable baud rate 9600 to 115.2 kbps

• Xon/Xoff or hardware flow control

• Optional: Bluetooth

• Optional: 802.11b Wireless LAN

Core programming languages

EPL2, ZPL II, CPCL-native

Linear

Codabar
Code 128
Code 93
Code 39
EAN-8 and EAN-13 with 2 or 5 digit extensions
Interleaved 2-of-5
Postnet
Plessey
UCC/EAN-128
FIM
UPC-A and UPC-E with 2 or 5 digit extensions

2-dimensional

PDF417
MaxiCode
Data Matrix
RSS
QR Code
QR Code (requires Asian version printer)

Fonts and Graphics

• Standard fonts: five resident scalable, rotatable fonts from 12-48 pt.

• Downloadable soft fonts from Label Vista software

• Optional internal character sets

• Supports graphics, line and box drawing features; PCX and bitmap
