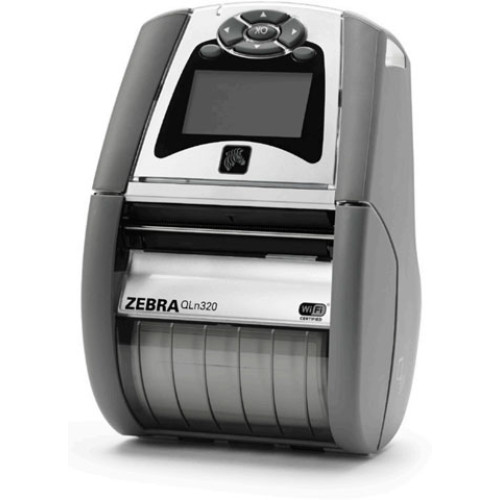

Zebra QLn320 Healthcare Portable Barcode Printer

Zebra QLn320 Healthcare Portable Barcode Printer

This durable 3-inch printer is packed with features and connectivity options, and offers high-quality printing, proactive alerts and convenient charging capabilities. Mobile printing enables users to label bedside specimens and samples at the point of collection, reducing the risk of errors and adverse events.
Discontinued - Need Assistance
See all options

STANDARD FEATURES

  • Disinfectant-ready plastics in a healthcare color scheme
  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips (102 mm/s)

More Standard Features
  • Apple® iOS, Android, Windows Mobile and BlackBerry® connectivity
  • CPCL, EPL™ and ZPL® programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
  • 2450 mAh (nominal) 18.1 Wh removable, rechargeable Li-Ion battery
  • Built-in battery charger
  • IEC 60601-certified AC adapter for medical environments
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • Center-loading media locking for variable roll widths
  • “Clamshell” design for easy media loading
  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch® and Wavelink Avalanche®
  • Large, easy-to-read LCD control panel (240 x 128 pixels)
  • LCD can be customized using WML (text and icons)
  • 5-way navigation buttons, two software defined keys
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 5’/1.52 m to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • 400 MHz 32-bit ARM processor
  • XML support
  • Supports vertical and horizontal printing
  • Printers can be used in any orientation
  • QR barcode links to web-based help pages
  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
  • Label odometer
  • Real-time clock

Printer Specifications

Resolution: 200 dpi (8 dots/mm)

Memory

  • 128 MB RAM
  • 256 MB Flash

Print width: 2.9" (72 mm)
Print length: 32" (813 mm)
Print speed: up to 4 ips (102 mm/s)


Media Characteristics
  • Maximum label and liner width: 3.125" (79 mm)
  • Minimum label and liner width: 1.0" (25 mm)
  • Maximum label and liner length: 32" (813 mm)
  • Maximum roll diameter: 2.6" (66 mm)
  • Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
  • Media thickness: 2.3 mil to 5.5 mil tag stock and 6.5 mil label stock
  • Media types: Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

Programming Lanuages
  • CPCL, EPL™ and ZPL®

Operating Characteristics
  • Operating temperature: -4° F (-20° C) to 122° F (50° C)
  • Storage temperatures: -13° F (-25° C) to 158° F (65° C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% non-condensing
  • Electrical DC charging input: 12 VDC ± 10% at 2A maximum
  • 2.45 AH, 7.4V removable, rechargeable Li-ion battery

Agency approvals
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA

Physical Characteristics

Width: 4.6" (117 mm)
Height: 3.3" (84 mm)
Depth: 6.8" (173 mm)
Weight: 1.6 lbs (.72 kg)


Communication and Interface Capabilities
  • 802.11 a/b/n with BT 3.0
  • Bluetooth 3.0
  • 10/100 Ethernet support (via docking cradle)
  • USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
  • Serial interface: 14-pin RS-232C

barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
