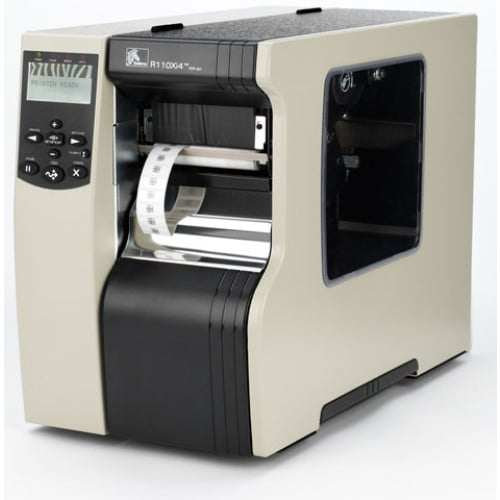

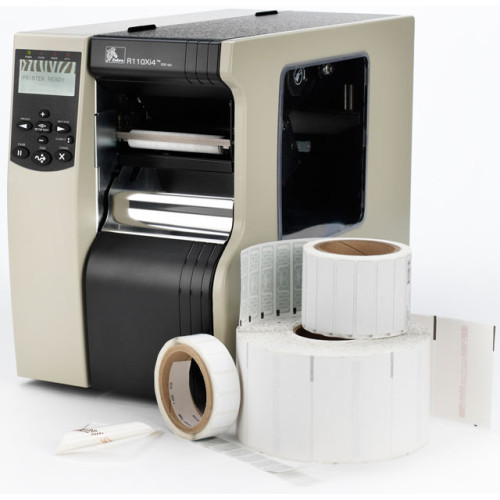

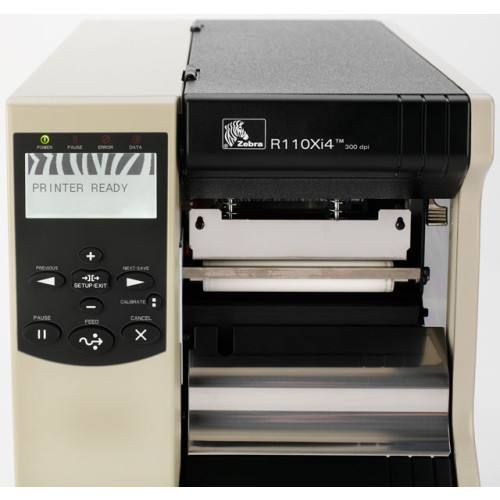

Zebra R110 Xi4 RFID Printer

The Zebra R110 Xi4 high-performance RFID printer/encoder delivers superior flexibility and unique features for a number of benefits. The R110 Xi4 can fulfill a wide range of applications, from small, high-resolution (600-dpi) healthcare specimen smart labeling and item-level tagging to RFID pallet/carton labeling with print widths up to 4"/103 mm. Auto-configuration, which enables encoding of a variety of different RFID tags, simplifies setup. And by encoding RFID inlays that are spaced closer together (.6"/16 mm) than other-brand printer/encoders, the R110 Xi4 enables lower cost per label, fewer media-roll changes, and faster throughput. Even use media converted for other printers/encoders thanks to Zebra's ability to detect variable inlay placement. If you don't need printed labels, the direct-to-inlay encoding capability means even more media savings.
Questions?
1-888-875-7170
We respond to every email

Interface

Maximum Print Width ?

Frequency Range ?

Print Resolution ?

Included Features

R110 Xi4 Options
Part # DescriptionAvailabilityPriceOrder
R12-801-00200-R0 R110Xi4, Thermal transfer printing, UHF RFID, 203 dpi, Ethernet, USB, Serial, Parallel Interfaces, Rewinder and Peeler. Ships Free Today $3,759.12
Retail $5221
Save 28%
R12-801-00000-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel/Ethernet Connection, ZebraNet Internal Print Server, 203 dpi, LCD. Cables Sold Separately. Ships Free Today $3,528.00
Retail $4900
Save 28%
R12-801-00100-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel Connection, ZebraNet Internal Print Server, 203 dpi, LCD, US/Canada/Puerto Rico. Cables Sold Separately.
Ships Free in 3-5 Days
$4,073.04
Retail $5657
Save 28%
R13-801-00000-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel/Ethernet Connection, ZebraNet Internal Print Server, 300 dpi, LCD. Cables Sold Separately. Ships Free Today $3,684.96
Retail $5118
Save 27%
R13-801-00200-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel Connection, ZebraNet Internal Print Server, 300 dpi, Rewinder, Peeler, LCD, US/Canada/Puerto Rico. Cables Sold Separately.
Ships Free in 3-5 Days
$3,916.08
Retail $5439
Save 28%
R16-801-00001-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel Connection, ZebraNet Internal Print Server, 600 dpi, LCD, Clear Media Side Door, 3 inch Media Spindle. Cables Sold Separately. Ships Free Today $5,097.60
Retail $7080
Save 27%
R13-801-00100-R0 R110Xi4, RFID Printer-Encoder (300 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120 VAC Cord-NA, Cutter with Catch Tray, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and Media Hanger)
Ships Free in 3-5 Days
$4,230.00
Retail $5875
Save 28%
R12-8K1-00000-R0 R110Xi4, RFID PRINTER, 203 dpi, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, ZebraNet B/G PRINTSERVER16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND HANGER, RFID CONFIGURED, 120 VAC CORD
Ships Free in 3-5 Days
$3,918.96
Retail $5443
Save 27%
R12-801-00000-GA R110Xi4, RFID Printer-Encoder (203 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120VAC Cord-NA, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and Media Hanger). This is the TAA-compliant version of this product for government purchasers. Please Call for more information. Ships Free Today $4,165.00
Retail $4900
Save 15%
R13-801-00000-GA R110Xi4, RFID Printer-Encoder (300 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120 VAC Cord-NA, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and Media Hanger). This is the TAA compliant version of this product for government purchasers. Please Call for more information.
Ships Free in 3-5 Days
$4,350.30
Retail $5118
Save 14%
R16-801-00201-R0 R110Xi4, RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel Connection, ZebraNet Internal Print Server, 600 dpi, LCD, Clear Media Side Door, 3 inch Media Spindle, Rewinder, Peeler. Cables Sold Separately.
Ships Free in 3-5 Days
$7,401.00
R13-8K1-00000-R0 R110Xi4, 300 dpi, RFID XI4, Serial/Parallel/USB INT 10/100 US CORD
Ships Free in 3-5 Days
$4,075.92
Retail $5661
Save 27%
R13-8K1-00200-R0 RFID, 300 DPI, ZebraNet B/G Print Server (Radio Card Included), RS-232 Serial, Parallel, Usb 2.0, Internal ZebraNet 10/100 Print Server, Na Edition 120V Ac Cord, Rewind With Peel, 16Mb Sdram, ZPL Ii And Xml
Ships Free in 3-5 Days
$4,307.76
Retail $5983
Save 27%
R12-80E-00003-R1 R110Xi4, CONFIG FOR EMEA, UAE, SAUDI ARABIA, S AFRICA, VIETNAM, UK AND EURO POWER CORDS AND SWISS 721 Bluetooth FONT, 203 dpi, RS-232 SERIAL, PARALLEL, USB 2.0 AND INTERNAL ZebraNet 10/100 PRINT SERVER
Ships Free in 3-5 Days
$4,615.00
R13-804-00000-R1 R110Xi4, 300 DPI, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, 16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND HANGER, RFID CONFIGURED EMEA, UAE, EURO 240V AC CORD WITH EURO AND UK PLUG
Ships Free in 3-5 Days
$4,695.00
R16-801-00101-R0 R110Xi4, UHF RFID Thermal Printer, 600 dpi, 4" print width, USB/Ethernet/Parallel/Serial Interfaces, 16MB SDRAM, Cutter with tray, Clear Media Door
Ships Free in 3-5 Days
$5,641.92
Retail $7836
Save 27%
R13-806-00000-R2 RFID, 300 DPI, RS-232 SERIAL, PARALLEL, USB 2.0, INTERNAL ZebraNet PRINTSERVER, AUSTRALIAN EDITION 240V AC CORD, 16MB SDRAM, ZPL II & XML, CLEAR MEDIA SIDE DOOR & MEDIA HANGER, CONFIG FOR AUSTRALIA & NEW ZEALAND
Ships Free in 3-5 Days
$4,695.00
R13-809-00003-RA 300 DPI, Chinese Cord, S erial, Parallel, USB, 10/100, Bifold
Ships Free in 3-5 Days
$4,815.00
R16-8K1-00201-R0 R110Xi4, UHF RFID PRINTER, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet B/G PRINT SERVER (RADIO CARD INCLUDED), REWIND WITH PEEL, 16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND 3IN MEDIA SPINDLE, RFID CONFIGURED, 120 VAC CORD Check Availability Call for Details
R16-8K1-00001-R0 R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet B/G PRINT SERVER (RADIO CARD INCLUDED), 16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND 3IN MEDIA SPINDLE, RFID CONFIGURED, 120 VAC CORD Check Availability Call for Details
R16-8K1-00000-R0 R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, ZebraNet B/G PRINTSERVER 16MB SDRAM, ZPL/XML, CLEAR MEDIA SIDE DOOR AND MEDIA HANGER, RFID CONFIGURED, 120 VAC CORD Check Availability Call for Details
R16-801-00211-R0 R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, REWIND WITH PEEL, 64MB ON BOARD LINEAR FLASH MEMORY, ZPL II AND XML, CLEAR MEDIA SIDE DOOR AND 3IN MEDIA SPINDLE, RFID CONFIGURED FOR US Check Availability Call for Details
R16-801-00210-R0 R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, REWIND WITH PEEL, 64MB ON BOARD LINEAR FLASH MEMORY, ZPL II AND XML, CLEAR MEDIA SIDE DOOR AND MEDIA HANGER Check Availability Call for Details
R16-801-00184-R0 R110Xi4, 600 DPI, SERIAL, PARALLEL, USB, CUTTER WITH CATCH TRAY, 64MB FLASH WITH PRINTHEAD ELEMENT OUT DETECTION, CLEAR BI-FOLD MEDIA SIDE DOOR AND 3IN MEDIA SUPPLY SPINDLE, RFID CONFIG, 120 VAC CORD Check Availability Call for Details
R13-8K1-00010-R0 Check Availability Call for Details
R13-8K1-00004-R0 R110Xi4, 300 DPI, SERIAL, PARALLEL, USB, ZebraNet 10/100 PRINT SERVER, ZebraNet B/G PRINT SERVER 16MB SDRAM, ZPL/XML, CLEAR BI-FOLD MEDIA SIDE DOOR & 3 INCH MEDIA SUPPLY SPINDLE, RFID CONFIGURED, 120 VAC CORD Check Availability Call for Details
R13-859-00000-RB R110Xi4, 300 dpi, RFID XI4, Serial/Parallel/USB INT 10/100 A/I CHI CORD HG MY Check Availability Call for Details
R13-851-00070-R0 R110Xi4, 300 DPI, SERIAL, PARALLEL, USB, INTERNAL ZebraNet 10/100 PRINT SERVER, APPLICATOR INTERFACE PORT (5V), 16MB SDRAM (PRINTHEAD ELEMENT OUT DETECTION), ZPL/XML, CLEAR MEDIA SIDE DOOR AND MEDIA HANGER, RFID CONFIGUR Check Availability Call for Details
R13-851-00000-RE R110Xi4, 220Xi4, 300 DPI, US Cord, Seria INT 10/100 APP PORT I/O 16MB Check Availability Call for Details
R13-851-00000-RB R110Xi4, 300 dpi, RFID XI4, Serial/Parallel/USB INT 10/100 A/I US CORD/THAILAN Check Availability Call for Details

Page: 1 2 »

Accessories

Part # DescriptionAvailabilityPriceOrder
P1031031 ZebraNet PrintServer II, External ZebraNet, 10/100 PrintServer for all Zebra tabletop models (110Xi, ZM, ZT) and any desktop zebra printer with a parallel port. Ships Free Today $173.99
Retail $249
Save 30%
48735-120 ZebraNet Bridge Enterprise, Net Bridge Enterprise for 100+ Printe Ships Free Today $895.50
Retail $995
Save 10%
P1032273 Internal Wi-Fi (802.11b/g) Interface for Xi4 Series and 105SL Plus Ships Free Today $440.00
Retail $550
Save 20%
P1000219 Xi4 Printer Accessories, Xi4 SEH PS105-Z EXT IPV6 PrintServer Ships Free Today $296.79
Retail $411
Save 27%
79823 Internal ZebraNet 10/100 (for the ZM4 and ZM6 Printers) Ships Free Today $269.98
P1007561 Xi4 Printer Accessories, Applicator Interface (5V Series) for the Xi4 Ships Free Today $157.44
P1008479 Xi4 Printer Accessories, Kit (Rewind Option 2/300) for the 110Xi4 Ships Free Today $370.48
G33114M Kit (RS-232/RS-485 External Converter) Ships Free Today $45.06
Retail $61
Save 26%
P1009634 Xi4 Printer Accessories, PCMCIA Wireless+ Kit (for the Xi4) Ships Free Today $384.29
13832-002 ZebraDesigner Pro Software, Designer MYSAP (Version 2) Ships Free Today $318.98
Retail $495
Save 35%
13831-002 Designer Pro, Designer Pro v.2.0, Windows, License for 1 User Ships Free Today $177.21
Retail $275
Save 35%
P1018600-R0 KIT RFID UPGRADE 110XI4 R0
Ships Free in 3-5 Days
$1,016.67
Retail $1500
Save 32%
P1008480 Accessories, Kit Media Rewind Upgrade 600 DPI 110Xi4
Ships Free in 3-5 Days
$465.60
Retail $582
Save 19%
P1007564 KIT INTRNL PRNTSVR IPV6 XI4
Ships Free in 3-5 Days
$385.94
P1006156 KIT MISC ELECTRNICS CABLES Xi4
Ships Free in 3-5 Days
$35.62
Retail $42
Save 15%
P1006140 Accessories, Kit (Cables for Printhead) for the Xi4
Ships Free in 3-5 Days
$39.28
Retail $48
Save 18%
P1004273 Xi4 Printer Accessories, Main Logic Board Kit (8MB) for the Xi4
Ships Free in 3-5 Days
$879.08
Retail $1235
Save 28%
G41254M Accessories, Kit Media Spindle 40 mm ID Media Core 110Xi4 & 110Xi3+
Ships Free in 3-5 Days
$138.40
Retail $173
Save 19%
G41253M KIT MAINT MEDIA SUPPLY SPINDLE
Ships Free in 3-5 Days
$101.69
Retail $110
48768-001 Basic Interpreter 2.0, Enablement Kit for 25 Printers Ships Free Today $1,580.46
Retail $2475
Save 36%
48767-001 Basic Interpreter 2.0, Enablement Kit for 5 Printers Ships Free Today $317.75
Retail $495
Save 35%
48766-001 Basic Interpreter 2.0, Enablement Kit for 1 Printer
Ships Free in 3-5 Days
$67.42
Retail $99
Save 31%
48734-120 ZebraNet Bridge Enterprise, Net Bridge Enterprise for 1-100 Printers
Ships Free in 3-5 Days
$715.50
Retail $795
Save 10%
48733-120 ZebraNet Bridge Enterprise, Net Bridge Enterprise for 1-50 Printers
Ships Free in 3-5 Days
$535.50
Retail $595
Save 10%
48560-003 XiIII Printer Accessories, CD (Maintenance Manual) for the Xi
Ships Free in 3-5 Days
$49.52
47362 Preventative Maintenance Kit (for the 105SL) Ships Free Today $20.37
37996 Cable (15 feet, USB, M-A to M-B) for the XI, 105SL and Z Series Printers
Ships Free in 3-5 Days
$23.34
13833-002 ZebraDesigner Pro Software, Designer XML (Version 2)
Ships Free in 3-5 Days
$316.09
Retail $495
Save 36%
39518M KIT MAG MOUNT ANT WIRELESS+ Ships Free Today $79.60
Retail $116
Save 31%
P1011156 Xi4 Printer Accessories, Applicator Interface (24-28V) for the Xi4 Ships Free Today $216.21
Retail $319
Save 32%
Recommended Labels
Zebra DogBone RFID Paper Label (10015351-R)
3.819" x 1.063" DogBone RFID Paper Label, Permanent Adhesive, Thermal Transfer, Paper, Perforated-No, Labels Per Roll-3000, Rolls Per Carton/1. For use with Tabletop/Industrial - RFID Printers.
Ships Today
$676.00
+ Add to Quote
Zebra ShortDipole RFID Paper Label (10015352-r)
3.819" x 0.591" ShortDipole RFID Paper Label, Permanent Adhesive, Thermal transfer, Paper, Perforated-No, labels/roll-5000, rolls/case/1. For use with Tabletop/Industrial - RFID Printers.
Ships in 3-5 Days
$903.50
+ Add to Quote
Zebra Belt RFID Paper Label (10015350-r)
2.874" x 0.669" Belt RFID Paper Label, Permanent Adhesive, Thermal transfer, Paper, Perforated-No, labels/roll-5000, rolls/case/1. For use with Tabletop/Industrial - RFID Printers.
Ships in 3-5 Days
$903.50
+ Add to Quote
Zebra RFID Labels (10002054R4)
RFID Label, 4" x 2", UHF, Gen2, Thermal transfer, Paper, Alien 9740 Squiggle Inlay, H4, Perforated, 1,000 RFID labels/roll. Compatible with Zebra RZ Series RFID Printers.
Ships in 3-5 Days
$249.95
+ Add to Quote
Zebra RFID Labels (10002053R4)
RFID Label - 4" x 6" - UHF, Gen2, Thermal Transfer, Paper, Alien 9740 Squiggle Inlay, H4, Perforated, 500 RFID Labels/Roll.
Ships in 3-5 Days
$111.80
+ Add to Quote

Zebra R110 Xi4 Details

STANDARD FEATURES

  • RFID counters keep track of the good and bad labels
  • RFID processes optimized for fastest label throughput
  • RFID ZPL Commands allow ease of RFID set-up with maximum flexibility

More Standard Features

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory: 16MB RAM
8MB Flash (2 MB available to user)
Print width: 4" (102 mm) maximum
Print length: 150" (3810 mm) maximum
Print speed: Up to 14" (356mm) per second
Media sensors: Reflective, Transmissive


Media Characteristics

Maximum label and liner width: .79" (20 mm) to 4.5" (114 mm)
Maximum label and liner length: 150" (3810 mm)
Media types: continuous, die-cut, black mark, notch


Ribbon Characteristics

Outside diameter: 3.2" (81.3 mm)
Standard length: 1476' (450 m) or 984' (300 m)
Ratio: 2:1 and 3:1 media roll to ribbon ratios
Ribbon: setup Ribbon wound coated side out
ID Core: 1" (25.4 mm)


Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20 to 85% non-condensing R.H.
Electrical

Agency approvals


Physical Characteristics

Width: 10.31" (261.9 mm)
Height: 15.5" (393.7 mm)
Depth: 20.38" (517.5 mm)
Weight: 50 lbs (22.7 kg)


Related Products

Options

Communication and Interface Capabilities


Programming Languages

Core programming languages: XML, ZPL, ZPL II


barcodes/Symbologies

Linear Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
ISBT-128
UPC-A
UPC-E
EAN-8
EAN-13
UPC and EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
Planet Code
2-dimensional Codablock
PDF417
Code 49
Data Matrix
MaxiCode
QR Code
TLC 39
MicroPDF
RSS / GS1 DataBar family (12 barcodes)
Aztec
Fonts and Graphics
