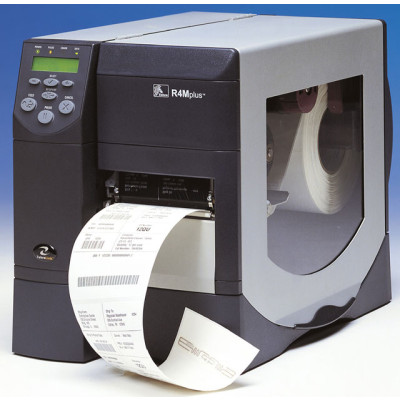

Zebra R4Mplus RFID Printer

This product has been discontinued. It is replaced by the Zebra R110 xi.

With its rugged die-cast metal enclosure, the R4Mplus performs dependably in harsh environments such as warehouses, distribution centers, and manufacturing plants. Its durability, along with the data accuracy and tracking efficiency provided by its RFID capabilities, make the R4Mplus ideal for a variety of applications.

Questions?

1-888-875-7170

Email We respond to every email

Information:	Specifications \| Ask a question \|
Accessories:	No accessories available \| Bar code Software \| Zebra R4Mplus Service Contract \|
Supplies:	Zebra R4Mplus Label \| Zebra R4Mplus Ribbon \| Zebra Print head \|

Part #	Description	Availability	Price	Order
R4M01-2001-0120	R4Mplus, Thermal transfer, 203 dpi, 4.09" print width, 8MB DRAM, 2MB Flash, serial & PrintServer II interfaces. Order cables separately. See accessories.	Check Availability	Call for Details
R4M01-2001-0100	R4Mplus, Thermal transfer, 203 dpi, 4.09" print width, 8MB DRAM, 2MB Flash, serial & parallel interfaces. Order cables separately. See accessories.	Check Availability	Call for Details

Zebra R4Mplus Details

Standard Features

Print methods: Thermal transfer or direct thermal
ZebraLink (requires PSII to unleash Webview and Alert)
32 bit processor
Transmissive media sensor
Metal media cover with large clear window
Real time clock
Auto-calibration
Auto-ranging power supply
Color-coded operator cues
Back-lit LCD control panel
RS-232 serial and bi-directional parallel interface
Zebra's E³™ Printhead Energy Control

Resolutions
Standard 203 dpi (8 dots/mm)

Maximum Print Speeds
10" (254 mm/sec) (203 dpi)

Memory
Standard 8 MB DRAM, 2 MB Flash

Optional:
Up to 32 MB additional linear Flash (PCMCIA)
Up to 256 MB additional ATA format (PCMCIA or CompactFlash cards)

Programming Language

ZPL® and ZPL II®: Universal language for Zebra printers. Simplifies label formatting and enables
ZBI™-Controls and interprets text and data from
peripherals and non-ZPL printer programming
languages. Transmits captured data over LAN, WAN,
or wireless network via e-mail or TCP/IP messaging

Physical Characteristics
Width: 10.93"/278 mm
Depth: 18.69"/475 mm
Height: 13.32"/338 mm
Weight (without packaging): 32.4 lbs/15 kg

Operating Characteristics

Environment
Operating Environment 32°F/0°C to 104°F/40°C (direct thermal)
Operating Environment 40°F/5°C to 104°F/40°C (thermal transfer)
Storage Environment -40°F/-40°C to 140°F/60°C
Operating Humidity 20-85% non-condensing
Storage Humididty 5-85% non-condensing

Electrical
Universal auto-ranging (PFC-compliant) power
supply 90-265 VAC; 48-62 Hz; 5A fused

Communication Interface Capabilities
RS-232C (422/485 with serial port adapter)
Bi-directional IEEE 1284 parallel port
Embedded ZebraLink Webview and Alert features (require optional ZebraNet PrintServer II)
ZebraNet PrintServer II option (internal or external)

Agency Approvals

cULus, FCC-B

Media Characteristics - Smart Labels

Media Specifications
Maximum label and liner length 39"/991 mm

Maximum Print Area
Width: 4.09"/104 mm
Length with 203 dpi: 165"/4,202

Max. Roll Size
8"/203 mm O.D. on a 3"/76 mm I.D. core

Thickness (label & liner)
.0023"/.058 mm to .01"/.25 mm

Media Types
Continuous or fanfold, die-cut, notched, tag stock, perforated

Supported Transponder Types
EPC UHF Class 1 (draft specification)
Alien Technology

Ribbon Specifications
Max. Roll Size
3.2"/81.3mm O.D. on a 1"/25.4mm I.D. core

Standard Lengths
1476'/450m; provides 3:1 media roll to ribbon ratios

Ribbon Set-up
Ribbon wound ink side out
Ribbon must be at least as wide as media.

Fonts/Graphics/Symbologies

Fonts and Character Sets

Standard Fonts: 7 bitmapped, 1 smooth scalable
(CG Triumvirate™ Bold Condensed)
Sets: IBM® Code Page 850 International character set
Optional European and Asian font sets
Supports user-defined fonts and graphics-including
custom logos
ZPL II drawing commands-including boxes and lines

Bar codes/Symbologies

Code 11	UPC-A, UPC-E	Industrial 2-of-5
Code 39	EAN-8, EAN-13	Logmars
Code 93	Plessey	Postnet
Code 128 with subsets A/B/C and UCC Case C Codes	Interleaved 2-of-5	UPC and EAN with 2 or 5 digit extensions
Codabar	Standard 2-of-5	MSI
Planet Code	RSS

2-Dimensional Codes

Codablock	PDF417	Code 49
MicroPDF417	Data Matrix	QR Code
TLC 39	RSS	MaxiCode

Options and Accessories

Memory board card socket option
RS-422/485 serial port adapter
Up to 32 MB additional linear Flash memory (PCMCIA)
Up to 256 MB additional ATA format (PCMCIA or CompactFlash cards)
Adjustable transmissive sensor
ZebraNet PrintServer II (provides internal or external Ethernet connectivity)
BAR-ONE® 6.04 label design software
European and Asian fonts
