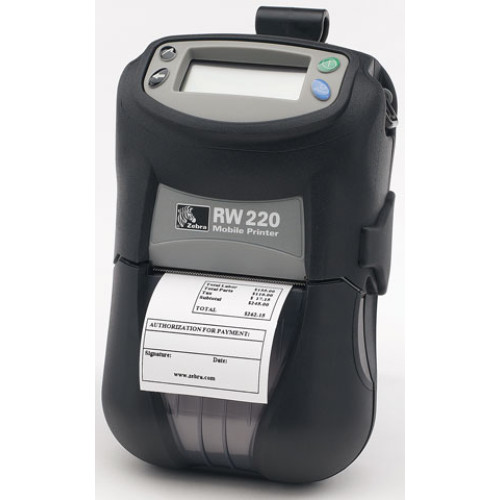

Photo of Zebra RW220
Zebra logo

Zebra RW220 Portable Printer

Zebra ZQ110 A newer version of this item is available.
It is replaced by the Zebra ZQ110.
The Zebra RW220 is a 2-inch mobile printer ideal for receipts on the go. Its modular design allows users to choose among secure wireless options and card readers. The compact printer also offers convenient vehicle mounting and charging options, as well as user-intuitive interfaces and angled display. Additionally, the RW220 has a high speed processor and large memory for quick and efficient processing of complex receipts, graphics and fonts using sophisticated wireless options. As the only mobile receipt printer to meet the stringent IP54 dust and water resistance rating, the RW220 can withstand the harsh demands of a number of Route Accounting/Field Service, Retail and Transportation printing applications, including: Delivery Receipts, payment receipts and travel passes.
Questions?
1-888-875-7170
We respond to every email
RW220 Options
Part # DescriptionAvailabilityPriceOrder
R2D-0UBA000N-03 RW 220, 2IN, LCD, 8MB/16MB, Bluetooth, LINERED PLATEN, CUSTOM PRINTER
Ships Free in 3-5 Days
$666.05
Retail $865
Save 23%
R2D-0UKA010N-00 RW220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, ZVR 802.11b/g, Standard Media, Magnetic card reader/Smart card reader and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0UKA000N-00 RW220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, ZVR 802.11b/g, Standard Media and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0UGA010N-00 RW220, 8M/16M U/L 802.11b/G Magnetic card reader See Replacement Call for Details
R2D-0UGA000N-00 RW 220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, ZVR 802.11b/g, Standard Media and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0UBA010N-00 RW220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, Bluetooth, Standard Media, Magnetic card reader/Smart card reader and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0UBA000N-00 RW220, Plus Direct Thermal Mobile Receipt Printer (2 Inch Printhead, LCD, 8MB/16MB, Bluetooth, Standard Media and Group N). Power supply (Part# AT17696-1) not included, see accessories. See Replacement Call for Details
R2D-0U0A010N-00 RW220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, Cable Ready, Standard Media, Magnetic card reader/SC and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0U0A000N-00 RW220, Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 16MB DRAM, 8MB Flash, Standard Media and Group N). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UMA010N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Symbol 802.11b, Magnetic and Smart Card Readers. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UMA000N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Symbol 802.11b. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UKA010N-00 RW220, Direct thermal, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, 802.11g, Includes Magnetic Card Reader. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UKA000N-00 RW220, Direct thermal, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, 802.11g. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UFA010N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Zebra Value Radio 802.11b, Magnetic and Smart Card Readers. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UFA000N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Zebra Value Radio 802.11b. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UBA010N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Bluetooth, Magnetic & Smart Card Readers. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0UBA000N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Bluetooth. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0U0A010N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces, Magnetic and Smart Card Readers. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0U0A010E-00 RW220, Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB DRAM, 4MB Flash, U/L Magnetic card reader/SC EU). Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2A-0U0A000N-00 RW220, Direct thermal Mobile Receipt Printer, 2" Printhead, 4-button LCD, 4MB DRAM, 8MB Flash, Serial and USB Interfaces. Power supply (Part# AT17696-1) not included. See accessories. See Replacement Call for Details
R2D-0UKA010N-GA RW220, 8MB/16MB, US/Canada English, 802.11b/g, Standard media, Magnetic card reader, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0UKA010N-00) for government purchasers. Please call for more information. Power supply (Part# AT17696-1) not included. See accessories. Check Availability Call for Details
R2D-0UKA000N-GA RW220, 8MB/16MB, US/Canada English, 802.11b/g, Standard media, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0UKA000N-00) for government purchasers. Please call for more information. Power supply (Part# AT17696-1) not included. See accessories. Check Availability Call for Details
R2D-0UJA000N-00 RW 220, 2 INCH, LCD, 8/16MB, Bluetooth/802.11b/G COMBO, LINERED PLATEN Check Availability Call for Details
R2D-0UGA010N-GA RW Series, RW220 8M/16M U/L 802.11b/G Magnetic card reader. This is the TAA compliant version of this product for government purchasers. Please Call for more information. Check Availability Call for Details
R2D-0UGA000N-GA RW Series, RW 220, Plus Direct thermal Mobile Receipt Printer (2 inch Printhead, LCD, 8MB/16MB, ZVR 802.11b/g, Standard Media and Group N). This is the TAA compliant version of this product for government purchasers. Please Call for more information. Check Availability Call for Details
R2D-0UGA000N-01 RW 220, 2 INCH, LCD, 8MB/16MB, ZEBRA PERFORMANCE RADIO 802.11 B/G, LINERED PLATEN, CUSTOM (EMP, MCW) Check Availability Call for Details
R2D-0UBA010N-GA RW220, 8MB/16MB, US/Canada English, Bluetooth, Standard media, Magnetic card reader, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0UBA010N-00) for government purchasers. Please call for more information. Check Availability Call for Details
R2D-0UBA010E-00 RW220, 2" DT RUGGED MOBILE RECEIPT PRINTER, XML/EPL/ZPL, 8MB/16MB, EU/EFTA/INDIA/RUSSIA/TURKEY, LCD DISPLAY, IP54, USB, SERIAL, Bluetooth, INCLUDES BATTERY, BELT CLIP Check Availability Call for Details
R2D-0UBA000N-GA RW220, 8MB/16MB, US/Canada English, Bluetooth, Standard media, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0UBA000N-00) for government purchasers. Please call for more information. Power supply (Part# AT17696-1) not included. See accessories. Check Availability Call for Details
R2D-0U0A010N-GA RW220, 8MB/16MB, US/Canada English, Standard media, Magnetic card reader, LCD, belt clip. This is the TAA compliant version of printer (Part# R2D-0U0A010N-00) for government purchasers. Please call for more information. Power supply (Part# AT17696-1) not included. See accessories. Check Availability Call for Details

Page: 1 2 »

Accessories

Part # DescriptionAvailabilityPriceOrder
CC16614-G9 Lighter Plug, RCLI-DC Charger, 12V. For RW and QL Series Printers. Ships Free Today $120.21
Retail $160.11
Save 24%
CC16614-G4 Running Charger, Lithium Ion, AC. power supply for the QL Plus and RW series. Ships Free Today $208.48
Retail $277.84
Save 24%
AK18026-002 AC Battery kit for RW 220 Ships Free Today $74.11
Retail $98.89
Save 25%
BA16625-1 Media Spacer for fanfold media for RW series printers Ships Free Today $31.85
Retail $37.67
Save 15%
AT17010-1 USB Cable for the RW and QL Series Mobile Printers Ships Free Today $21.69
AK18026-001 Mobile, Rw220 Soft Case (Does Not Include Shoulder Strap)
Ships Free in 3-5 Days
$51.71
Retail $70.64
Save 26%
AK17463-018 RW220 Vehicle Cradle with RAM mount kit and base plate
Ships Free in 3-5 Days
$155.55
Retail $211.91
Save 26%
Protect Your Product
Zebra Service Contract - 3 year (Z1AE-RWX1-3C0)
Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, RW220, RW420, 3 Years, Comprehensive
Ships in 3-5 Days
$150.36
+ Add to Quote
Zebra Service Contract - 5 year (Z1AE-RWX1-5C0)
Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, RW220, RW420, 5 Years, Comprehensive
Ships in 3-5 Days
$300.73
+ Add to Quote
Zebra Service Contract - 3 year (Z1AF-RWX1-3C0)
Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, RW220, RW420, 3 Years, Comprehensive
Ships in 3-5 Days
$162.70
+ Add to Quote
Zebra Service Contract - 5 year (Z1AF-RWX1-5C0)
Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, RW220, RW420, 5 Years, Comprehensive
Ships in 3-5 Days
$325.41
+ Add to Quote
Zebra Service Contract - 3 year (Z1AS-RWX1-3C0)
Select, Purchased within 30 days of Device, Advanced Exchange, RW220, RW420, 3 Years, Comprehensive
Ships in 3-5 Days
$178.12
+ Add to Quote
Recommended Labels
Zebra Z-Perform 1000D (LD-R2AL5B-R)
2" x 1.25" Direct thermal paper label. Black mark sensing, Not perforated. 280 labels/roll, single roll. Also available as a case (Part# LD-R2AL5B).
Ships in 3-5 Days
$11.50
+ Add to Quote
Zebra Z-Perform 1000D (LD-R2AL5B)
2" x 1.25" Direct thermal paper label. Black mark sensing, Not perforated. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2AL5B-R).
Ships Today
$99.40
+ Add to Quote
Zebra PolyPro 4000D (LD-R2BF5W)
2" x 1.25" Direct thermal polypropylene label. Shelf mark adhesive. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2BF5W-R).
Ships Today
$178.00
+ Add to Quote
Zebra PolyPro 4000D (LD-R7BL5B)
2" x 1" Direct thermal polypropylene label. Black mark sensing, Not perforated. 350 labels/roll, 36 roll case. Also available as a roll (Part# LD-R7BL5B-R).
Ships Today
$162.60
+ Add to Quote
Zebra Z-Perform 1000D (LD-R7MU5P-R)
2" x 1" Direct thermal paper label. Black mark sensing, Not perforated. 350 labels/roll, single roll. Also available as a case (Part# LD-R7MU5P).
Ships in 3-5 Days
$11.54
+ Add to Quote

Zebra RW220 Details

Standard Features

  • Print method: Direct thermal
  • Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
  • Smart battery management (monitors battery for longer life and performance)
  • 4 button angled LCD (standard)
  • Resident scalable fonts
  • Media sensors: Bar, gap
  • Advanced 32 bit architecture for high-speed processing
  • Standard Serial and USB interfaces
  • Programming Language: Native CPCL, ZPL and EPL emulations (standard)
  • Auto-detect firmware load

Printer Specifications

Resolution
203 dpi (8 dots/mm)
Memory
  • 4 MB Flash
  • 8 MB DRAM
Print width
2.20" (56 mm) maximum
Print speed
3" (76 mm)/sec

Media Characteristics

Media width
1" (25 mm) x 2.37" (60 mm)
Maximum roll diameter
2.25" (57 mm)
Core diameter
.75" (19 mm) or 1.38" (34.9 mm)
Media thickness
.002" (.05 mm) to .0063" (0.16 mm)
Media types
receipt, tag, gap, continuous receipt, continuous

Operating Characteristics

Operating temperature
DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal
Storage temperatures
-22° F (-30° C) to 149° F (65° C)
Operating humidity
10-90% non-condensing
Storage humidity
10-90% non-condensing
Electrical
  • External charging options
  • Optional DC charger with Cigarette Lighter Adapter
  • Shock mounted internal components
  • Standard cable connection: RS-232, RJ-45 10 pin
  • Selectable baud rate: 9600 to 115.2 Kbps
  • Xon/Xoff or hardware flow control (RTS/CTS)
  • USB full speed support, 12 Mbits/second
  • Optional Bluetooth or 802.11b(Symbol Compact Flash or Zebra Value Radio)
Lithium Ion
2.0 Ah
7.4 V
Agency approvals
  • FCC Part 15 Class B
  • Canadian ICES-003
  • VCCI
  • NOM/NYCE
  • CE compliance (Class B)
  • C-Tick
  • CSA

Physical Characteristics

Width
4.4" (112 mm)
Height
6.9" (173 mm)
Depth
2.9" (74 mm)
Weight
1.45 lbs (0.658 kg)
Orientation
Center

Communication and Interface Capabilities

  • Optional Bluetooth v. 1.2 or 802.11b (Symbol Compact Flash or Zebra Value Radio)
  • Standard cable connection: RS-232, RJ-45 10 pin
  • Standard USB 2.0 full speed

Programming Languages

Core programming languages
CPCL-native, ZPL, EPL, EPL2

Bar codes/Symbologies

Linear
Code 39
Code 93
UCC/EAN-128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC and EAN 2 or 5 digit extensions
Plessey
FIM
Postnet
Interleaved 2-of-5
MSI
Codabar
2-dimensional
PDF417
Data Matrix
MaxiCode
RSS
QR Code
Fonts and Graphics
  • Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation
  • Optional Fonts: downloadable bitmapped and scalable fonts
  • International Character Sets (optional):
    Chinese 16x16 (trad), 16x16 (simplified), 24x24 (simplified)
    Japanese 16x16, 24x24
    Hebrew/Arabic
  • Supports user-defined fonts and graphics--including custom logos
