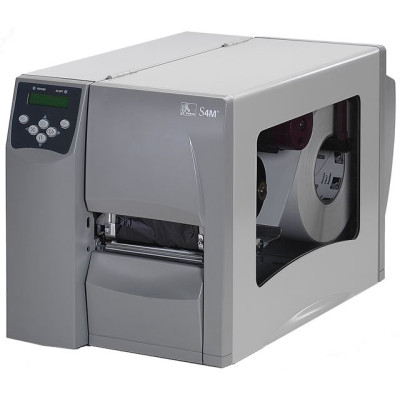

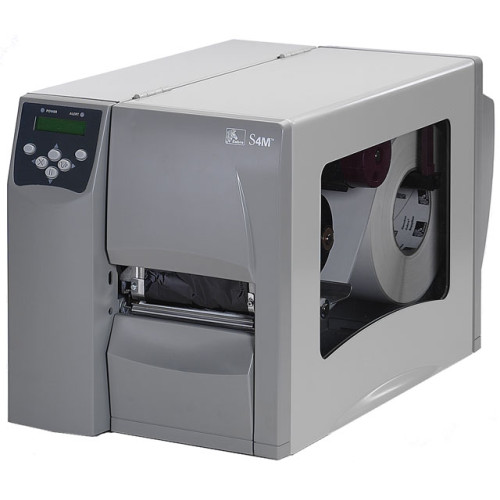

Zebra S4M Printer

This product has been discontinued. It is replaced by the Zebra ZT200 Series.

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.

Questions?

1-888-875-7170

Email We respond to every email

Fill out your contact information and a message and we'll get back to you.

To:

questions@barcodegiant.com

Name*:

Email*:

Phone:

Message*:

I live outside of USA/Canada

Spam protection*: Type "barcode"in the field below.

Zebra S4M Details

S4M Specifications

• Print Methods: Direct thermal and Thermal Transfer (optional)
• Construction: Die-cast metal frame with sheet metal enclosure
• Metal media cover with enlarged clear window
• Element Energy Equalizer (E3) for superior print quality
• Back-lit LCD control panel
• Parallel, USB 1.1 and RS-232 serial ports


Resolution

203 dpi (8 dots/mm)
300 dpi (12 dots/mm)

Memory

4MB Flash, 8MB DRAM

Print width

4.09"/104 mm

Print length

203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional)

Print speed

6" (152 mm)/sec

Media sensors

Reflective
Transmissive

Maximum label and liner width

0.75"/19.4 mm to 4.50"/114 mm

Minimum label and liner width

0.75" (19.4 mm)

Maximum label and liner length

Maximum non-continuous: 39"/991 mm

Maximum label and liner length (optional)

39" (991 mm)

Core diameter

8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core

Media thickness

0.003"/0.076 mm to 0.010"/0.25 mm

Media types

continuous, die-cut, tag, black mark

Outside diameter

3.2"/81.3 mm

Standard length

984'/300 m or 1476'/450 m

Ratio

2:1 media roll to ribbon ratio for 984'/300 m
3:1 media roll ribbon ratio for 1476'/450 m

Ribbon width

1.57"/40 mm to 4.33"/110 mm

Ribbon setup

Ribbon wound ink-side out

ID Core

1.0" (25.4 mm)

Operating temperature

TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal

Storage temperatures

-40° F (-40° C) to 140° F (60° C)

Operating humidity

20% to 85% non-condensing

Storage humidity

5% to 85% non-condensing

Electrical

Universal auto-ranging (PFC-complaint) power supply 90-265VAC, 48-62 Hz

Agency approvals

• IEC 60950
• EN 55022 Class B
• EN55024
• EN 61000-3-2
• EN 61000-3-3

Width

10.7"/272 mm

Height

11.6" (295 mm)

Depth

18.8" (477 mm)

Weight

27.2 lbs (12.4 kg)

Shipping weight

33.5 lbs (15.2 kg)

Options

• Thermal Transfer Ribbon Handling System
• Print head 300 dpi (12 dots/mm) (ZPL Only)
• A front mount, passive peel, w/ no take-up spindle
• Factory Installed 64 MB Flash Memory
• Additional scalable and smooth bitmapped fonts available
• ZebraNet Wireless Print Server
• Internal ZebraNet 10/100 Print Server
• External ZebraNet 10/100 Print Server
• External ZebraNet PrintServer II
• Keyboard Display Unit (KDU) (EPL only)
• Real Time Clock (RTC)
• APL-I firmware
• APL-D firmware

Communication and Interface Capabilities

• RS-232 serial port
• USB 1.1
• Parallel


Core programming languages

EPL-Page Mode, ZPL I/ZPL II

Linear

Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC-A with 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
Planet Code
RSS (reduced space symbology)

2-dimensional

Codablock
Code 49
Data Matrix
MaxiCode
QR Code
MicroPDF417
TLC 39
RSS

Fonts and Graphics

• 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)

• International character sets supporting the following code page: IBM Code Page 850 International character set

• Support user-defined fonts and graphics – including custom logos

• ZPL II drawing commands – including boxes and lines
  (ZPL only, other firmware languages may vary
