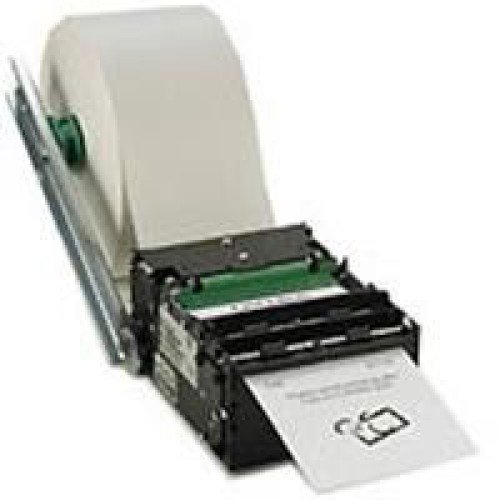

Photo of Zebra TTP2000
Zebra logo

Zebra TTP2000 Printer

Heralding a new generation in kiosk printing solutions, the Zebra TTP2000 series packages the latest reliability and performance features into one of the most compact kiosk printer models on the market. It also provides excellent reliability for kiosks with features like the guillotine cutter, jam-preventing loop presenter, tear-preventing pull detector, and retract-and-retain function that protects customers' private information by retracting any printouts left behind. With its variety of media roll locations (above, behind, and below), its compact size, and its vertical configuration option, the TTP2000 offers a flexible solution for kiosk integration. Typical applications for the TTP2000 include loyalty and discount vouchers, vending and photo kiosk receipts. The TTP 2000 handles paper widths between 2.28"/58 mm and 3.25"/82.5 mm, and is available with a parallel, USB, or serial interface.

Print Method ?

Interface

Print Width ?

Print Speed ?

Color

Form Factor

Magstripe Option ?

Cutter Option ?

TTP2000 Options
Part # DescriptionAvailabilityPriceOrder
01971-000 TTP2000, TTP 2010 with RS-232 Serial interface. Requires paper guide, not included. See accessories. Ships Today $355.10
Retail $530
Save 32%
01972-000 TTP2000, TTP 2020 with Parallel interface. Requires paper guide, not included. See accessories. Ships Today $355.10
Retail $530
Save 32%
01973-000 TTP2000, TTP 2030 with USB interface. Requires paper guide, not included. See accessories. Ships Today $355.10
Retail $530
Save 32%

Zebra TTP2000 Details

STANDARD FEATURES

  • Direct thermal printing
  • Looping presenter with pull detector
  • Retract and retain function

More Standard Features

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

Print length: 2.75" (70 mm) to 23.6" (600 mm)
Print speed: 5.9" (150 mm)/sec


Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.1 mm)
Media types: Roll or fanfold


Operating Characteristics

Operating temperature DT: Operating temperature: 32° F (0° C) to 122° F (50° C)
Direct thermal Storage temperatures: 32° F (0° C) to 122° F (50° C)
Operating humidity: 35-75% non-condensing R.H.
Electrical: 24 VDC, ± 5%, average 2 A when printing


Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (68 mm)
Depth: 5.7" (144 mm)
Weight: 2.4 lbs (1.1 kg)


Kiosk Characterstics

Max/Min Receipt Width: 3.15" (80 mm) and 2.4" (60 mm)/2.3" (58 mm) and 2.4" (60 mm)


Related Products

Communication and Interface Capabilities


barcodes/Symbologies

Linear Code 128
Code 39
Interleaved 2-of-5
2-D PDF 417
ISBN
UPC
EAN
Fonts and Graphics
