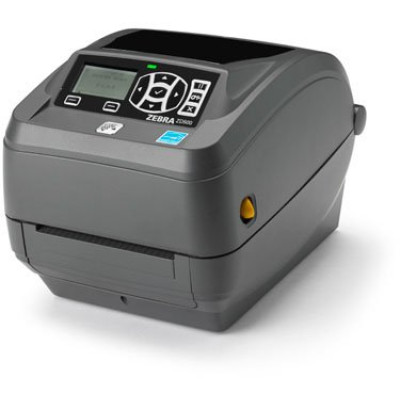

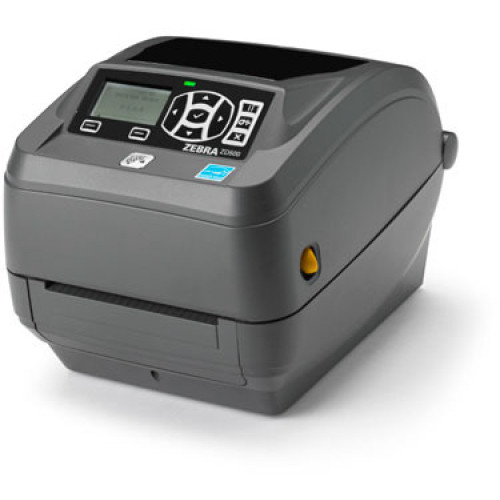

Zebra ZD500 Printer

Bringing Link-OS environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.
Questions?
1-888-875-7170
We respond to every email

Labels Per Day ?

Maximum Print Width ?

Interface Options

Printer Type ?

Print Method ?

Print Resolution ?

Included Features

ZD500 Options
Part # DescriptionAvailabilityPriceOrder
ZD50042-T01A00FZ ZD500, Thermal transfer Printer, 203 dpi, 4" print width, LCD, USB/RS-232/Parallel/Ethernet/Bluetooth/Wi-Fi Interfaces. Interface cables sold separately. Ships Free Today $746.40
Retail $1244
Save 40%
ZD50042-T01200FZ ZD500, Thermal transfer Printer, 203 dpi, 4" print width, USB/RS-232/Parallel/Ethernet Interfaces. USB Cable and US power cord included. Ships Free Today $597.00
Retail $995
Save 40%
ZD50042-T21200FZ ZD500, Thermal transfer Printer, 203 dpi, 4" print width, Cutter, USB/RS-232/Parallel/Ethernet Interfaces. Interface cables sold separately. Ships Free Today $717.00
Retail $1195
Save 40%
ZD50043-T01200FZ ZD500, Thermal transfer Printer, 300 dpi, 4" print width, USB/RS-232/Parallel/Ethernet Interfaces. Interface cables sold separately. Ships Free Today $657.00
Retail $1095
Save 40%
ZD50043-T21A00FZ ZD500, Thermal transfer Printer, 300 dpi, 4" print width, LCD, Cutter, USB/RS-232/Parallel/Ethernet/Bluetooth/Wi-Fi Interfaces. USB Cable and US power cord included. Ships Free Today $926.40
Retail $1544
Save 40%
ZD50043-T11200FZ Thermal transfer Printer, 300 dpi, 4" print width, LCD, Peeler, USB/RS-232/Parallel/Ethernet Interfaces. Interface cables sold separately.
Ships Free in 3-5 Days
$678.00
Retail $1130
Save 40%
ZD50043-T01A00FZ ZD500, Thermal transfer Printer, 300 dpi, 4" print width, USB/Serial/Parallel/Ehernet/Wi-Fi (802.11a/b/g/h) /Bluetooth Interfaces. Interface cables sold separately. Ships Free Today $806.40
Retail $1344
Save 40%
ZD50042-T11A00FZ ZD500, Thermal transfer Printer, 203 dpi, 4" print width, USB/Serial/Parallel/Ehernet/Wi-Fi (802.11a/b/g/h) /Bluetooth Interfaces, Peeler. Interface cables sold separately. Ships Free Today $767.40
Retail $1279
Save 40%
ZD50042-T21A00FZ ZD500, Thermal transfer Printer, 203 dpi, 4" print width, LCD, USB/RS-232/Parallel Interfaces. Interface cables sold separately. Ships Free Today $866.40
Retail $1444
Save 40%

Zebra ZD500 Details


Printer Features
  • Tool-less printhead and platen replacement
  • OpenACCESS for easy media loading
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD User Interface
  • Zebra E3 Printhead Energy Control
  • ENERGY STAR qualified
  • Link-OS enabled
  • Print Touch app
  • Unicode compliant for multi-language printing
  • 16 resident expandable ZPL II bitmap fonts
  • Two resident scalable ZPL fonts
  • Auto-switching 100-240V power supply
  • Head-up sensor
  • Standard tear-off mode feature
  • 3" media core adaptor
  • Zebra printer drivers for Windowsâ„¢

Printer Specifications

Resolution:

  • 203 dpi (8 dots/mm)
  • 300 dpi (12 dots/mm) optional

 Memory:

  • 128 MB Std SDRAM memory (4 MB available to user)
  • 256 MB Std Flash memory (56 MB available to user)


Print length:

  • 39" (990 mm) maximum


Programmable print speeds of 2, 3, 4, 5, and 6 ips (51, 76, 102, 127, and 152 mm/s)

Media sensors:

  •  Full width reflective and multiposition transmissive sensors

Media Characteristics

Maximum label and liner length: 39"/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75"/19 mm to 4.25"/108 mm

Label Length:

  • Minimum using tear off mode: .25" (6.3 mm)
  • Minimum with label present sensor used - 0.50" (12.7 mm)
  • Minimum with cutter - 1.0" (25.4 mm)

Maximum media roll size: 5"/127 mm O.D.

Media thickness: 0.003"/0.08 mm to 0.012" (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands


Ribbon Characteristics

Outside diameter: 1.36"/35 mm
Standard length: 244'/74M
Ratio:  1:1 media to roll to ribbon
Width:  1.33"/33.8 mm to 4.3"/109.2 mm
Core inner diameter: 0.5"/12.7 mm


Environmental

Storage Temperatures: -40 degrees F/-40 degrees C to 140 degrees F/60 degrees C


Physical Characteristics

Width:  7.6"/193 mm
Height: 7.5"/191 mm
Depth: 10.0"/254 mm
Weight: 4.9 lbs/2.2 kg


Barcodes/Symbologies
  • Barcode Ratios: 2:1 (non-rotated) and 3:1
  • Linear Bar Codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
  • 2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Options and Accessories
  • 300 dpi print resolution printing for fine detail and crisp images
  • Wireless—802.11 a/b/g/n and Bluetooth 3.0
  • Dispenser—label peel and present with present sensor
  • Cutter for various media types
  • RFID encoding available
  • ZKDU and KDU Plus keyboard display for stand-alone printing solutions
