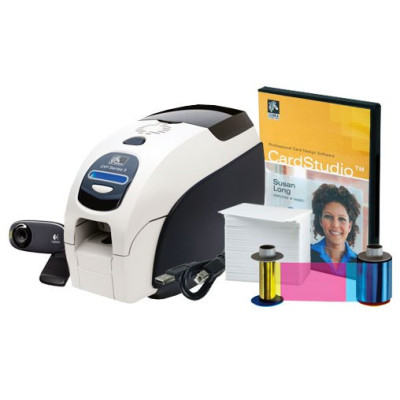

Photo of Zebra ZXP 3 ID Card Printer System
Zebra logo

Zebra ZXP 3 ID Card Printer System ID Card Printer System

The Zebra ZXP 3 ID Card Printer System is unique to the card printing market, employing several advanced features that provide best-in-class performance at an attractive price point. The ZXP 3 ID Card Printer System ZRaster host-based image processing technology takes advantage of the increased processing power of today's PCs to significantly optimise image and print quality while increasing overall print speed throughput. This permits greater sophistication in image optimisations without sacrificing printer speed or adding cost. Additionally, new Zebra high performance ribbons employ an improved chemical formulation specifically designed for fast high-quality image printing. Zebra is first to market with the new ribbons, which provide more efficient dye transfer and greater durability under printing conditions. Both these innovations work together to provide better image quality and faster throughput without compromising reliability or cost.
Questions?
1-888-875-7170
We respond to every email

Earn up to $400 back on a new Zebra card printer when you trade in any other card printer.
Offer valid through December 31, 2017. Check eligibility and claim your rebate ›

Item Condition

Color Printing

Operating System ?

Interfaces

Lamination ?

Printable Side ?

Printing Technology

Cards Per Day ?

Print Resolution ?

ZXP 3 ID Card Printer System Options
Part # DescriptionAvailabilityPriceOrder
ZEB03-B0021US2 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 double-sided card printer, USB, CardStudio software, Logitech webcam, and Media starter kit (165 cards, 1 YMCKOK color ribbon). Ships Free Today $2,677.50
Retail $3150
Save 15%
Z31-0000B200US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, CardStudio Standard software, webcam, and Media starter kit (200 Blank white PVC cards, 1 YMCKO color ribbon) Ships Free Today $1,955.00
Retail $2300
Save 15%
Z31-0M00C200US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, Magnetic encoder, CardStudio Standard software, webcam, and Media starter kit (200 magnetic stripe PVC cards, 1 YMCKO color ribbon)
Ships Free in 3-5 Days
$2,380.00
Retail $2800
Save 15%
Z32-0000D200US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 Double-sided card printer, USB, CardStudio Standard software, webcam, and Media starter kit (200 Blank white PVC cards, 1 YMCKOK color ribbon) Ships Free Today $2,677.50
Retail $3150
Save 15%
Z32-0M00E200US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 double-sided card printer, USB, Magnetic encoder, CardStudio Standard software, webcam, and Media starter kit (200 magnetic stripe PVC cards, 1 YMCKOK color ribbon) Ships Free Today $3,102.50
Retail $3650
Save 15%
ZEB03-BM021US2 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 double-sided card printer, USB, Magnetic encoder, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKOK color ribbon) See Replacement Call for Details
Z32-0M00E000US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 double-sided card printer, USB, Magnetic encoder, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKOK color ribbon) See Replacement Call for Details
Z32-0000D000US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 double-sided card printer, USB, CardStudio software, Logitech webcam, and Media starter kit (165 cards, 1 YMCKOK color ribbon). See Replacement Call for Details
Z31-0M00C000US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, Magnetic encoder, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKO color ribbon) See Replacement Call for Details
Z31-0000B000US00 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKO color ribbon) See Replacement Call for Details
ZEB03-BM021US1 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, Magnetic encoder, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKO color ribbon) Check Availability Call for Details
ZEB03-B0021US1 ZXP Series 3 ID Card Printer System, QuikCard ID Solution with ZXP Series 3 single-sided card printer, USB, CardStudio software, Logitech webcam, and Media starter kit (200 cards, 1 YMCKO color ribbon) Check Availability Call for Details
Z31-0M00C200EM00 ZXP Series 3 ID Card Printer System, Quickcard ID Solution with Enhanced ZXP Series 3 Single-sided card printer, USB, MSR Encoder, CardStudio Software, Logitech Webcam, and Media Starter Kit (200 cards, 1 YMCKO ribbon), Euro Power cord. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
105999-302 ZXP Series 3 Cleaning Kit, ZXP Series 3, Cleaning Kit, 4 print engine cleaning cards and 4 feeder cleaning cards (enough for 4,000 prints). Can be used with either version of ZXP Series 3 printers. Ships Free Today $34.34
104523-111 PVC Card, Blank White, CR-80/30 mil, 500 cards. Standard card size in industry. Compatible with all ID card printers. Ships Today $34.80
Retail $50
Save 30%
104523-113 PVC Card, White PVC cards, 30 mil high coercivity magnetic stripe (500 cards). Standard card size in industry. Requires a printer with magnetic stripe encoding option to encode magnetic stripe. Compatible with all ID card printers. Ships Today $61.56
Retail $90
Save 31%
104523-112 PVC Card, White PVC cards, 30 mil low coercivity magnetic stripe (500 cards). Standard card size in industry. Requires a printer with magnetic stripe encoding option to encode magnetic stripe. Compatible with all ID card printers. Ships Today $59.50
Retail $70
Save 15%
P1031925-029 Single Card Cleaning Roller Kit for ZXP Series 1 and ZXP Series 3 Ships Free Today $30.86
P1031925-029 Single Card Cleaning Roller Kit for ZXP Series 1 and ZXP Series 3 Ships Free Today $30.86
P1031925-001 Upgrade Kit, Ethernet Connectivity, Compatible with Zebra ZXP 1 and 3 Series. Ships Free Today $156.71
Retail $300
Save 47%
P1031925-012 KIT RIBBON SENSOR ZXP3 Ships Free Today
See Price in Cart
P1031925-077 Kit upgrade manual, Card Feed ZXP3 Ships Free Today $225.00
See Price in Cart
P1031925-050 ZXP Series Card Printer Accessories, Kit (Packaging) for the ZXP3
Ships Free in 3-5 Days
$69.95
Retail $86
Save 18%
P1031925-044 KIT OUTPUT HOP NON-ENCODE ZXP3
Ships Free in 3-5 Days
$22.81
P1031925-004 ZXP3 MIFARE & CONTACT SMART CARD ENCODER UPGRADE KIT
Ships Free in 3-5 Days
$995.00
P1031925-003 ZXP3 CONTACT STATION UPGRADE KIT
Ships Free in 3-5 Days
$200.00
800059-308 ZXP 8, Contactless (MIFARE) Ultralight Phillips card PVC Cards, PVC 30Mil, CR-80 size, 500 Per Box. Card may printed on with all ID Card printers. Printing and encoding can be performed by ZXP3, ZXP7, ZXP8, P330i, P430i, P100i Ships Today $467.50
800059-301 ZXP, Contactless (MIFARE) PVC Cards, 1K Classic Infineon Card, PVC 30Mil, CR-80 size, 500 Per Box. Card may printed on with all ID Card printers. Printing and encoding can be performed by ZXP3, ZXP7, ZXP8, P330i, P430i, P100i
Ships in 3-5 Days
$531.25
105912-212 USB cable (6 ft. A-B type). Compatible with P100i, P110i, P110m, P120i, P330m, P330i, P430i, P520i, P630i, P640i, ZXP3, ZXP7, ZXP8
Ships Free in 3-5 Days
$21.12
Protect Your Product
Zebra Service Contract - 3 year (CHSZX31-3)
Hot Swap Loaner agreement for ZXP Series 3 Single-sided Printer (Z31). Coverage includes Same day overnight shipment of loaner printer, Available as an add-on service to a Standard or Advantage ZebraCare Depot Card service agreement or the manufacturer's warranty. Coverage Period: 3 Year.
Ships in 3-5 Days
$750.00
+ Add to Quote
Recommended ID Printer Ribbons
Zebra ID Card Ribbon (800033-840)
ZXP Series 3 IX Series YMCKO Color Ribbon, 200 Images/roll. The ribbon is used to print in a variety of colors: yellow (Y), magenta (M), cyan (C), and black (K). The remaining overlay (O) provides an extra layer of protection for the card. This ribbon is used to print color on one side of a card. This ribbon is compatible with the ZXP Series 3 Printer.
Ships Today
$70.00
+ Add to Quote
Zebra ZXP Series 3 Ribbon (800033-340)
ZXP Series 3 IX Series Eco High Capacity YMCKO Color Ribbon 280 Images/roll. The ribbon is used to print in a variety of colors: yellow (Y), magenta (M), cyan (C), and black (K). The remaining overlay (O) provides an extra layer of protection for the card. This ribbon is used to print color on one side of a card. This ribbon is compatible with the ZXP Series 3 Printer.
Ships Today
$95.00
+ Add to Quote
Zebra ZXP Series 3 Ribbon (800033-348)
ZXP Series 3 IX Series Eco High Capacity YMCKOK Color Ribbon 230 Images/roll. The ribbon is used to print in a variety of colors: yellow (Y), magenta (M), cyan (C), and black (K). The remaining overlay (O) provides an extra layer of protection for the card. The second (K) allows for printing in black on the back side of the card. The ribbon is used to print on both sides of the card. This ribbon is compatible with the ZXP Series 3 Printer.
Ships Today
$93.50
+ Add to Quote
Zebra ZXP Series 3 Ribbon (800033-848)
ZXP Series 3 IX Series YMCKOK Color Ribbon 165 Images/roll. The ribbon is used to print in a variety of colors: yellow (Y), magenta (M), cyan (C), and black (K). The remaining overlay (O) provides an extra layer of protection for the card. The second (K) allows for printing in black on the back side of the card. The ribbon is used to print on both sides of the card only. This ribbon is compatible with the ZXP Series 3 Printer.
Ships Today
$80.00
+ Add to Quote
Zebra ZXP Series 3 Ribbon (800033-347)
YmcKO (short-panel or half-panel) IX Series Color Ribbon for ZXP Series 3, 400 Image prints per roll. The ribbon allows for printing in a variety of colors 1/2 the length of the card: yellow (Y), magenta (M), and cyan (C), and a full card print in black (K). The remaining overlay (O) provides an extra clear layer of protection for the card. This ribbon is used to print text and full-color images on one or both sides of a card. Compatible with the ZXP Series 3.
Ships Today
$68.00
+ Add to Quote

Zebra ZXP 3 ID Card Printer System Details

Standard Features

  • True Colours ix Series ZXP 3 highperformance ribbons with intelligent media technology
  • High capacity, Eco-Friendly Load-N-Go dropin ribbon cartridges
  • ZRaster host-based image processing

More Standard Features
  • Auto calibration of ribbon
  • USB connectivity
  • Microsoft Certified Windows drivers
  • Energy Star Certified
  • Print Touch NFC tag for online Printer documentation access
  • 100 card covered feeder (30 mil)
  • 45 card capacity output hopper (30 mil)
  • 16-character LCD operator control display
  • 300 dpi (11.8 dots/mm) print resolution
  • Two-year warranty on printer
  • Two-year (unlimited passes) original printhead
  • One-year hot swap (U.S. only)
  • Secure lock slot

Printer Specifications
  • Dye-sublimation thermal transfer direct to card
  • Full color or monochrome printing
  • Single- and dual-sided printing
  • 700 cph monochrome single-sided
  • 180 cph single-sided YMCKO
  • 140 cph dual-sided YMCKOK
  • Edge-to-edge printing on standard CR-80 media


Supplies Specifications
NOTE: The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series ZXP 3 high-performance ribbons.
  • Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
  • Integrated cleaning roller included on each ribbon.
  • Media Starter Kit (single-sided)- 1 YMCKO ribbon, 200 30-mil PVC cards,
  • Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images

Operating Characteristics
Operating temperature: 60F (15C) to 86F (30C)
Storage temperatures: 23F (-5C) to 158F (70C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Media Storage:
  • Temperature: 41F to 77F (5C to 30C)
  • Humidity: 35% to 65% non-condensing
  • Do not store in direct sunlight
Electrical
  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range : 47-63 Hz.
  • Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
  • FCC Class A

Physical Characteristics
Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 11.6 lbs (5.3 kg)
Optional Features
  • *Built-in 10/100 Ethernet connectivity
  • *CardSense single-card feed mode
  • ZebraCare extended product warranty programs
  • *Lockable enclosure with obscure output bin

Communication Interfaces
  • USB V2.0 (cable included) - standard
  • *Built-in 10/100 Ethernet - optional

Encoding Options and Specifications
  • Magnetic stripe encoder - ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
  • *Smart card contact station ISO 7816
  • *Combined MIFAREISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications - PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper)
  • Encoding over USB and Ethernet

Card Compatibility
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
  • Card Thickness: 10-40 mil
  • Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)
  • Card Material: PVC and PVC composite
  • Smart Card Contact - ISO 7816-1,2,3,4
  • Smart Card Contactless MIFARE ISO 14443A/B
  • Spot Color or monochrome print only on < 20 mil card thickness
