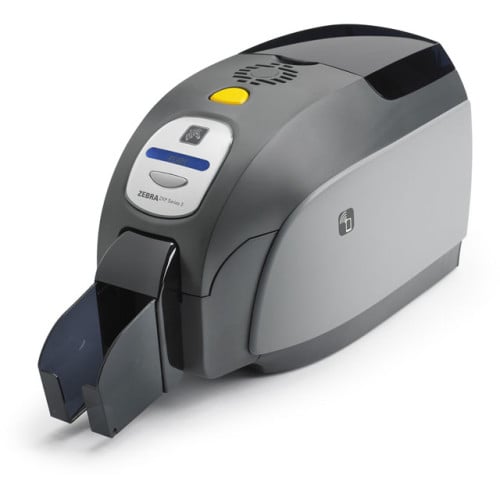

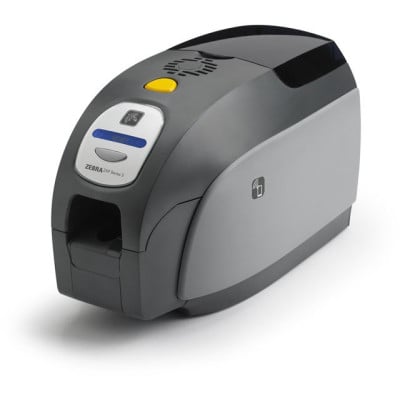

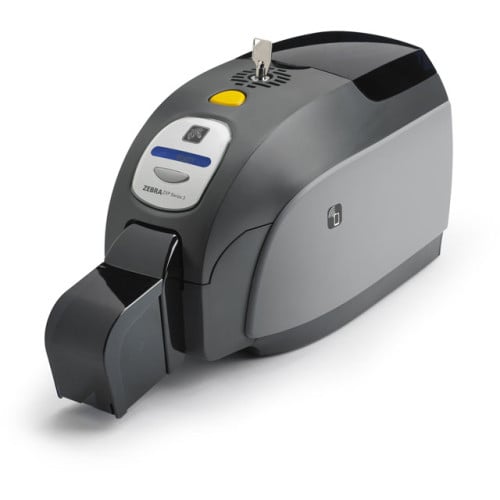

Zebra ZXP Series 3 ID Card Printer

Zebra ZXP Series 3 ID Card Printer

The Zebra ZXP Series 3 is a full-featured, high speed card printer ready to be integrated into standard ID card and access control applications. Its compact size makes it ideal for deployment in educational institutions and retail outlets for ID card, gift card, loyalty card, or membership card applications. The ZXP Series 3, with its added security and encoding features, also offers an affordable yet fully featured printing solution for the secure issuance of financial cards. The ZXP Series 3 includes features that set it apart in the market for a wide variety of card printing applications, including affordable on-demand card printing, standards-based smart card encoding, secure financial card issuance, high-performance "Load-N-Go" ribbons, "green" ribbon cassettes and a full-featured SDK making it easy to integrate with a wide variety of enterprise card printing applications.
Discontinued - Need Assistance
See all options
  • Dye-sublimation thermal transfer direct to card
  • Full color or monochrome printing
  • 300 dpi (11.8 dots/mm) print resolution
  • Single- or double-sided printing
  • Edge-to-edge printing on standard CR-80 media
  • High capacity, eco-friendly Load-N-Go drop-in ribbon cartridges
  • ZRaster host-based image processing
  • Auto calibration of ribbon
  • USB connectivity (optional Ethernet interface)
  • Microsoft Certified Windows drivers
  • Energy Star Certified
  • Print Touch NFc tag for online printer documentation and tools
  • 100 card covered feeder (30 mil)
  • 45 card capacity output hopper (30 mil)
  • Kensington secure lock slot
  • 16-character LCD operator control display
  • Two-year warranty on printer
  • Two-year (unlimited passes) original printhead

Standard Features

  • True Colours ix Series ZXP 3 highperformance ribbons with intelligent media technology
  • High capacity, Eco-Friendly Load-N-Go dropin ribbon cartridges
  • ZRaster host-based image processing

More Standard Features
  • Auto calibration of ribbon
  • USB connectivity
  • Microsoft Certified Windows drivers
  • Energy Star Certified
  • Print Touch NFC tag for online Printer documentation access
  • 100 card covered feeder (30 mil)
  • 45 card capacity output hopper (30 mil)
  • 16-character LCD operator control display
  • 300 dpi (11.8 dots/mm) print resolution
  • Two-year warranty on printer
  • Two-year (unlimited passes) original printhead
  • One-year hot swap (U.S. only)
  • Secure lock slot

Printer Specifications
  • Dye-sublimation thermal transfer direct to card
  • Full color or monochrome printing
  • Single- and dual-sided printing
  • 700 cph monochrome single-sided
  • 180 cph single-sided YMCKO
  • 140 cph dual-sided YMCKOK
  • Edge-to-edge printing on standard CR-80 media

Supplies Specifications
NOTE: The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series ZXP 3 high-performance ribbons.
  • Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
  • Integrated cleaning roller included on each ribbon.

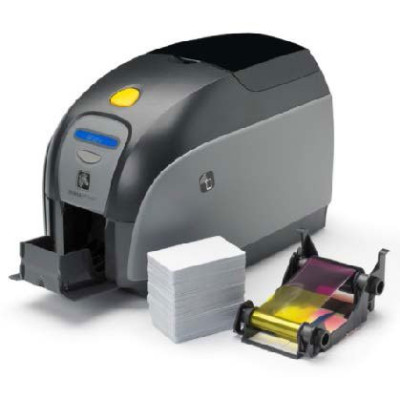

  • Media Starter Kit (single-sided)- 1 YMCKO ribbon, 200 30-mil PVC cards,
  • Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images

Operating Characteristics
Operating temperature: 60F (15C) to 86F (30C)
Storage temperatures: 23F (-5C) to 158F (70C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Media Storage:
  • Temperature: 41F to 77F (5C to 30C)
  • Humidity: 35% to 65% non-condensing
  • Do not store in directt sunlight
Electrical
  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range : 47-63 Hz.
  • Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
  • FCC Class A

Physical Characteristics
Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 11.6 lbs (5.3 kg)
Optional Features
  • *Built-in 10/100 Ethernet connectivity
  • *CardSense single-card feed mode
  • ZebraCare extended product warranty programs
  • *Lockable enclosure with obscure output bin

Communication Interfaces
  • USB V2.0 (cable included) - standard
  • *Built-in 10/100 Ethernet - optional

Encoding Options and Specifications
  • Magnetic stripe encoder - ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
  • *Smart card contact station ISO 7816
  • *Combined MIFAREISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications - PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper)
  • Encoding over USB and Ethernet

Card Compatibility
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
  • Card Thickness: 10-40 mil
  • Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)
  • Card Material: PVC and PVC composite
  • Smart Card Contact - ISO 7816-1,2,3,4
  • Smart Card Contactless MIFARE ISO 14443A/B
  • Spot Color or monochrome print only on < 20 mil card thickness
Extended Details
  1. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-00000000US00 | SKU: ZEB116440

    Single-side direct-to-card printer, USB interface. Includes US power supply cord and USB cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  2. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-0000H000US00 | SKU: ZEB116442

    Single-side direct-to-card printer, USB interface, with Media Starter Kit (1 YMCKO ribbon w/ cleaning roller, 200 PVC cards). Includes US power supply cord and USB cable. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  3. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-000C0000US00 | SKU: ZEB116443

    Single-side direct-to-card printer, USB and 10/100 Ethernet interfaces. Includes US power supply cord and USB cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  4. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-000CH000US00 | SKU: ZEB116444

    Single-side printing, USB and 10/100 Ethernet interface. Includes US Power Supply Cord, USB Cable and Media Starter Kit (1 YMCKO ribbon w/ cleaning roller, 200 PVC cards).
  5. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-00A00000US00 | SKU: ZEB116445

    Single-side direct-to-card printer, USB interface, lockable enclosure. Includes US power supply cord and USB cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  6. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-00AC0000US00 | SKU: ZEB116446

    Single-side printing, USB and Ethernet interfaces, US Cord, Enclosure Lock. Includes US Power Supply Cord and USB Cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  7. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-0M000000US00 | SKU: ZEB116447

    Single-side printing, with Magnetic Stripe encoder, USB interface,includes US Power Supply Cord and USB Cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  8. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-0M00H000US00 | SKU: ZEB116449

    Single-side printing, with Magnetic Stripe encoder, USB interface, US Power Supply Cord, USB Cable and Media Starter Kit (1 YMCKO ribbon w/ cleaning roller, 200 PVC cards).
  9. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-0M0C0000US00 | SKU: ZEB116450

    Single-side direct-to-card printer, with Magnetic Stripe Encoder, USB and 10/100 Ethernet interfaces. Includes US power supply cord and USB cable. Order ribbons, cards and software separately. (ZXP Series 3 card printers are compatible with True Colours ix Series ribbons only).
  10. Zebra ZXP Series 3 ID Card Printer
    Part #: Z31-0M0CH000US00 | SKU: ZEB116451

    Single-side printing, with Magnetic Stripe encoder USB and 10/100 Ethernet interfaces. Includes: US Power Supply Cord, USB Cable and Media Starter Kit (1 YMCKO ribbon w/ cleaning roller, 200 PVC cards).
