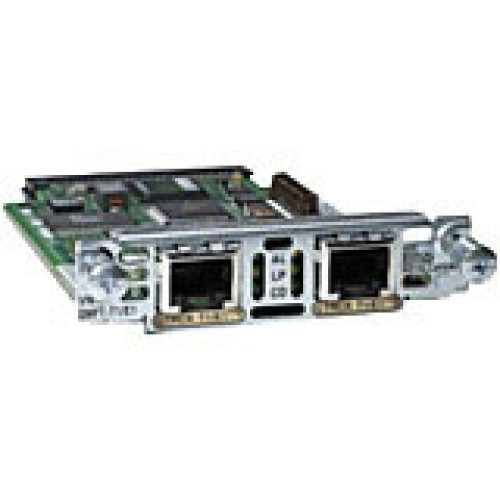

Cisco Multiflex Voice/WAN Interface Card Data Networking
Part #: VWIC2-1MFT-G703= | SKU: CIS226944

The Cisco 1 and 2-port T1/E1 Multiflex Voice/WAN Interface Cards ("Multiflex VWICs") support voice, and data applications in Cisco 2600, 2800, 3600, 3700, and 3800 multiservice routers. The Multiflex VWIC combines WAN Interface Card (WIC) and Voice Interface Card (VIC) functionality to provide unparalleled flexibility, versatility and investment protection through its many uses. Customers who choose to integrate voice and data in multiple steps preserve their investment in a T1/E1 WAN interface since the Multiflex VWIC can be reused in packet voice applications.

Cisco Multiflex Voice/WAN Interface Card Data Networking

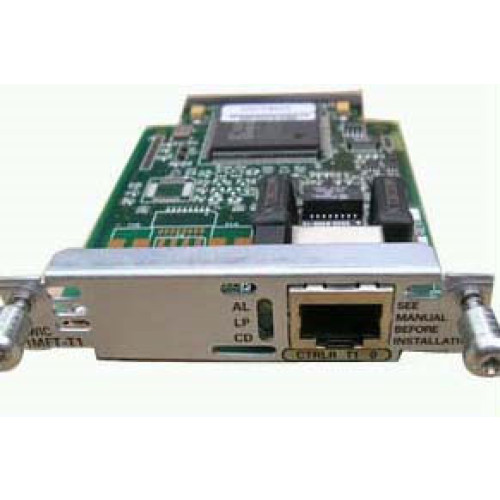

Part Details: 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703

Need a different version of the Cisco Multiflex Voice/WAN Interface Card Data Networking? View all 1 configurations

Additional Information

Manufacturer AIDC	Cisco
Model Name	Multiflex Voice/WAN Interface Card

Cisco Multiflex Voice/WAN Interface Card Specs (pdf)

General Information

Product Type:
- Voice/WAN Interface Card
- Voice/WAN Interface Card
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Name:
- 1-Port Multiflex Trunk G.703 (E1) Voice/Wan Interface Card
- 1-Port Multiflex Trunk G.703 (E1) Voice/Wan Interface Card

Technical Information

Application/Usage:
- Voice
- Voice
- Wide Area Network

Interfaces/Ports

Interfaces/Ports:
- 1 x E1 WAN
- 1 x E1 WAN
Interfaces/Ports Details:
- 1 x RJ-48 E1 WAN
- 1 x RJ-48 E1 Network WAN

Other

Compatibility:
- 1721
- 1751
- 1760
- 1841
- 2610XM
- 2611XM
- 2620XM
- 2621XM
- 2650XM
- 2651XM
- 2691
- 2801
- 2811
- 2821
- 2851
- Cisco 3800 series platforms
- NM-HDV2
- NM-2W
- NM-1FE1R2W
- NM-1FE2W-V2
- NM-2FE2W-V2
- 1721
- 1751
- 1760
- 1841
- 2610XM
- 2611XM
- 2620XM
- 2621XM
- 2650XM
- 2651XM
- 2691
- 2801
- 2811
- 2821
- 2851
- Cisco 3800 series platforms
- NM-HDV2
- NM-2W
- NM-1FE1R2W
- NM-1FE2W-V2
- NM-2FE2W-V2
- 1721
- 1751
- 1760
- 1841
- 2610XM
- 2611XM
- 2620XM
- 2621XM
- 2650XM
- 2651XM
- 2691
- 2801
- 2811
- 2821
- 2851
- 3800 Series
- 1721
- 1751
- 1760
- 1841
- 2610XM
- 2611XM
- 2620XM
- 2621XM
- 2650XM
- 2651XM
- 2691
- 2801
- 2811
- 2821
- 2851
- 3800 Series
Certifications & Standards:
- ITU-T G.703
- RFC 1406
- ITU-T G.703
- RFC 1406
Additional Information:
- Although unstructured G.703 operation is particular to E1 operation, the VWIC2 card also support structured T1 operation
- Controller local loopbacks
- Controller remote loopbacks
- Integrated CSU/DSU MIB
- Firmware to support T1 and E1 Layer 1 homologation
- User-initiated VWIC reset and field-programmable gate array (FPGA) download
- Voice support (includes DS0-group and PRI-group configuration)
- MFT VWIC2 has an onboard slot for a multiflex trunk dedicated echo cancellation module
- Dedicated Echo Cancellation module is not supported on MFT VWIC2 when MFT VWIC2 is used on the Cisco 1751 or 1760

Environmental Conditions

Humidity:
- 5% to 85% Non-condensing Relative Humidity Operating
- 5% to 95% Non-condensing Relative Humidity Non-operating
- 5% to 85% Non-condensing Relative Humidity Operating
- 5% to 95% Non-condensing Relative Humidity Non-operating
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage
- 32°F (0°C) to 104°F (40°C) Operating
- -13°F (-25°C) to 158°F (70°C) Storage

Management & Protocols

Management:
- MIB and Simple Network Management Protocol (SNMP) management
- MIB
- SNMP
Protocols:
- SNMP
- SNMP

Media & Performance

Data Transfer Rate:
- 2.05 Mbps E1
- 2.05 Mbps E1

Warranty

Limited Warranty: 90

Extended Details
