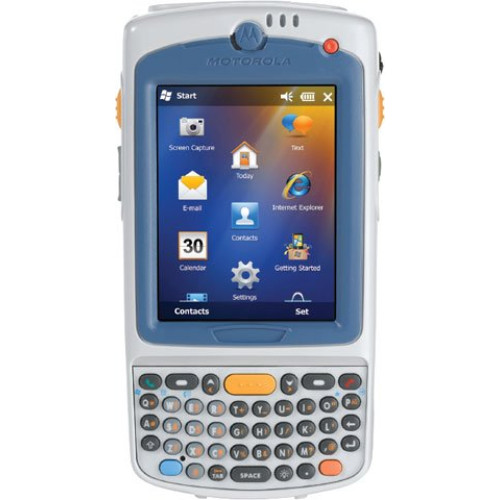

Motorola MC75A0-HC Mobile Computer
Part #: MC75A0-H80SWQQA0GR | SKU: MOT110683

The Motorola MC75A0-HC takes healthcare quality and patient safety to the next level. Designed to endure everyday drops and bumps as well as disinfecting after each patient, the MC75A0-HC also offers our most robust scanning performance on any barcode, desktop-like performance on wireless healthcare IT applications; connectivity to a wide range of medical equipment; and government grade FIPS 140-2 certification to secure all your wireless transmissions and ensure compliance with stringent HIPAA regulations.

Motorola MC75A0-HC Mobile Computer

Part Details: MC75A0-HC, MC75a0 Term Hc/Lp/Bbdl/256 1g/Qt/Windows Mobile 6.5/Taa

Need a different version of the Motorola MC75A0-HC Mobile Computer? View all 12 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	640 x 480
Drop Rating	5 ft/1.5 m
IP Rating	IP54
Manufacturer	Motorola
Model Name	MC75A0-HC
Network Connectivity	802.11a, 802.11g, Bluetooth, IrDA
Operating System	Windows Mobile 6.5
Operating Temperature	14 F - 122 F
Processor	806 MHz Marvell PXA320
Product Condition	New
RAM Memory	256 MB
Scanner Capability	2D
Scanner Type	Imager
Style	Phone-size

Motorola MC75A0-HC Specs (pdf)

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC75
Product Name: MC75 Handheld Terminal

Technical Information

Connectivity Technology: Wireless
Electrostatic Discharge (ESD):
- +/-8 kV DC Direct Discharge
- +/-15 kV DC Air Discharge
Drop Specification: 60" To Concrete

Physical Characteristics

Height: 6"
Width: 3.3"
Depth: 1.7"
Weight (Approximate): 14.92 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC75 Handheld Terminal
- Lithium Ion Battery
- MC75 Handheld Terminal
- Lithium Ion Battery
Certifications & Standards:
- IP54
- Electrical Safety:
- UL / cUL 60950-1
- IEC / EN60950-1
- WLAN and Bluetooth:
- FCC Part 15.247
- 15.407
- Canada:
- RSS-210
- EU:
- EN 300 328
- EN 301 893
- ARIB STD-T33
- ARIB STD-T66
- ARIB STD-T71
- AS/NZS 4268
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EU:
- EN 50360
- Radiocommunications Standard 2003
- EMI/RFI:
- FCC Part 15
- Class B
- ICES 003 Class B
- EN55022 Class B
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
- EN 301 489-19
- EN 301 489-24
- EN 60601-1-2
- AS/NZS CISPRA-22
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: External
Infrared: Yes
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAP v2)
- AES
- LEAP

Display & Graphics

Display Screen Type: LCD
Screen Mode: VGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 640 x 480

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: microSD High Capacity (microSDHC)

Battery Information

Battery Capacity: 3600 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 806 MHz
Processor Type: XScale

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 12 Month

Software

Operating System: Windows Mobile 6.5 Classic

Keyboard/Keypad

Keyboard Layout: QWERTY
