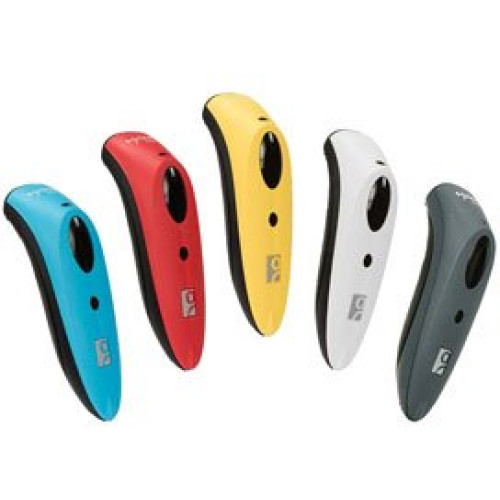

Socket Mobile CHS 7Qi Barcode Scanner
Part #: CX3314-1534 | SKU: SOC235130

Minimize manual data entry with the Socket CHS 7Qi, a portable 2D and 1D barcode scanner certified by Apple for the iPad, iPad mini, iPhone and iPod touch. Small, lightweight and comfortable to hold, the CHS 7Qi connects wirelessly to the latest smartphones and tablets and can scan barcodes printed on labels or displayed on device screens. It's ideal for retail point of sale, inventory management, and other mobile scanning applications.

Socket Mobile CHS 7Qi Barcode Scanner

Part Details: CHS 7Qi, iOS, Android, 2D, Blu e

Need a different version of the Socket Mobile CHS 7Qi Barcode Scanner? View all 10 configurations

Additional Information

Application	Vend
Connectivity	iOS/Android
Included Cables	USB
Manufacturer	Socket Mobile
Model Name	CHS 7Qi
Product Condition	New
Scan Pattern	Area
Scanner Capability	2D
Scanner Type	Imager
Specialty Encoding	None

Socket Mobile CHS 7Qi Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Scanning Distance: 15.98"
Image Sensor: Imager
Barcode Symbology Supported:
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (Including ISBT 128 Bit Concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417
- Macro PDF 417
- Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State Code
- USPS Intelligent Mail
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (Including ISBT 128 Bit Concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417
- Macro PDF 417
- Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State Code
- USPS Intelligent Mail

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: CHS 7Qi
Product Name: Bluetooth Cordless Hand Scanner (CHS) 7Qi

Physical Characteristics

Height: 5.1"
Width: 1.4"
Depth: 1.6"
Color: Blue
Weight (Approximate): 1.59 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Bluetooth Cordless Hand Scanner (CHS) 7Qi
- Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/Belt Clip with Retractable Tether,
- Software
- Bluetooth Cordless Hand Scanner (CHS) 7Qi
- Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/Belt Clip with Retractable Tether,
- Software
Certifications & Standards:
- Electrical Safety:
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
- EMI / RFI:
- FCC Part 15 Class C
- RSS 210
- iCES 003
- C-Tick
- CISPR 22
- CE EN55022
- EN55024
- TELEC
- Laser / LED Safety:
- IEC 60825-1
- EN 60825-1
Platform Supported:
- iOS
- Android
- PC
- Mac
- Smartphone

Battery Information

Number of Batteries Supported: 1
Battery Rechargeable: Yes
Maximum Number of Scans per Full Charge: 1000
Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

Limited Warranty: 1 Year

Network & Communication

Bluetooth: Yes

Power Description

Power Source: Battery
