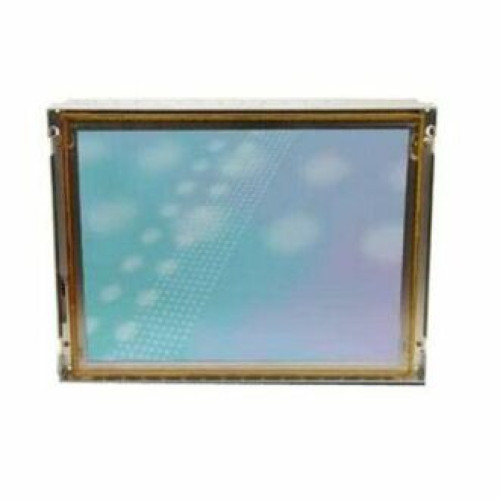

3M Touch Systems FPD Chassis Touchscreen 3M Touch Systems FPD Chassis Touchscreen

3M Touch Systems FPD Chassis Touchscreen
Part #: 11-4942-129-00 | SKU: 3M 9058

The FPD Chassis. When design space is limited, the slim metal case of the ChassisTouch LCD touch monitor is ideal. Back-mounted display controls are accessible even with the monitor sitting flush with the face of the enclosure, improving the aesthetics of your integration. An optional bezel (user installable) is available for applications requiring a more finished appearance.

3M Touch Systems FPD Chassis Touchscreen

Part Details: ChassisTouch Monitor, 17" FPD (Flat Panel Display), Capacitive Touchscreen, Metal Enclosure, Serial Controller
Need a different version of the 3M Touch Systems FPD Chassis Accessory? View all 7 configurations

Additional Information

Color Black
Display Type LCD
Form Factor Desktop
Manufacturer AIDC 3M Touch Systems
Model Name FPD Chassis
3M Touch Systems FPD Chassis Specs 3M Touch Systems FPD Chassis Specs (pdf)

Technical Information

  • Touch Screen Type: Capacitive
  • Screen Size: 17" - Active Matrix TFT LCD
  • Dot Pitch: 0.264mm
  • Monitor Response Time: 25ms
  • Mountable: VESA
  • OSD Controls: Brightness Contrast Horizontal Position Vertical Position Phase Auto-Adjust Sharpness Frequency Utility

General Information

  • Manufacturer: 3M
  • Product Line: MicroTouch
  • Product Name: MicroTouch CT Touch Screen Monitor

Physical Characteristics

  • Dimensions: 13.18" (335mm) x 15.98" (406mm) x 1.93" (49mm)
  • Weight: 4.6 kg (10.14 lb)

Interfaces/Ports

  • Interfaces: 1 x 15-pin - HD DB-15

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -25°C (-13°F) to 60°C (140°F) Storage
  • Humidity: 90% Operating Non-condensing

Display & Graphics

  • Maximum Resolution: 1280 x 1024
  • Brightness: 215 cd/m2
  • Ratio: 350:1 - Contrast Ratio

Power Description

  • Input Voltage: 12 V DC
  • Power Consumption: 20W - Normal
  • Power Management: VESA DPMS

Agency Approvals

  • Agency Approvals: FCC Class B CE UL cUL

Other

  • Additional Information: Display Color: 16.7 Million Colors (24-bit) Backlight Life: 35000 hours 5 years Touch Sensor and Components Warranty Viewing Angle: Horizontal: +/- 75° Vertical: +65°/-60°

Warranty

  • Manufacturer Warranty: 3 Year(s)
Extended Details
