| Manufacturer AIDC | 3M Touch Systems |
|---|---|
| Model Name | M150 FPD |

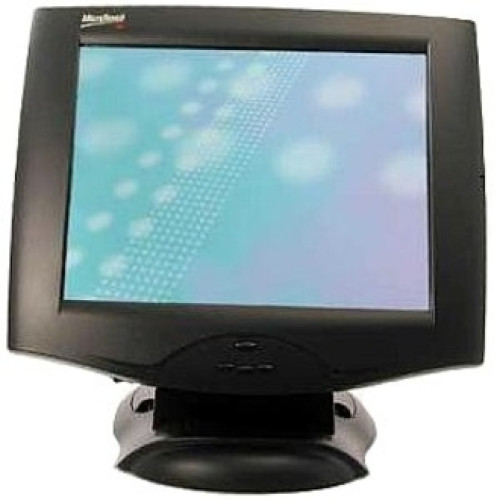

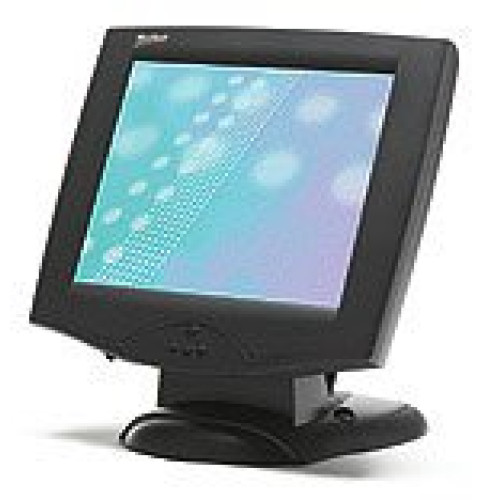

3M Touch Systems M150 FPD Specs
Technical Information
- Touch Screen Type: 5 Wire Resistive
- Screen Size: 15" - Active Matrix TFT LCD
- Dot Pitch: 0.297mm
- Monitor Response Time: 16ms Typical
- Mountable: VESA
- Front Panel Controls: Menu Adjust Select Power
- OSD Controls: Brightness Contrast Horizontal Position Vertical Position Clock Phase Auto Phase Color
General Information
- Manufacturer: 3M
- Product Line: MicroTouch
- Product Name: MicroTouch M150 Touch Screen Monitor
Physical Characteristics

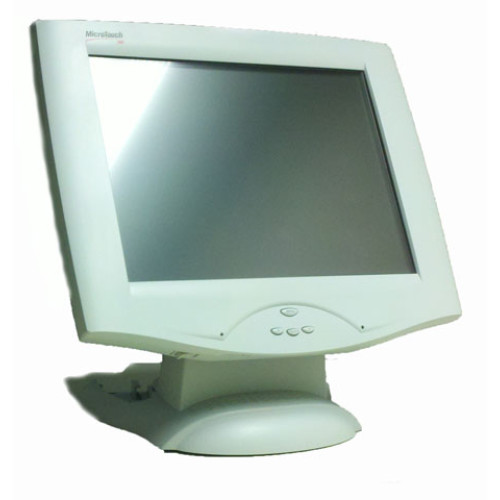

- Color: Beige
- Dimensions: 398.3mm (16") x 408mm (16") x 258.7mm (10") - Depth Includes Base
- Weight: 7.4 kg (16.31 lb) - Net
Interfaces/Ports
- Interfaces:
- 15-pin - HD DB-15
- Serial
- Audio Input
- Audio Output
Environmental Conditions
- Temperature:
- 0°C (32°F) to 50°C (122°F) Operating
- -20°C (-4°F) to 60°C (140°F) Storage
- Humidity: 85% Operating Non-condensing
Display & Graphics
- Maximum Resolution: 1024 x 768
- Brightness: 250 cd/m2
- Ratio: 350:1 - Contrast Ratio
Power Description
- Input Voltage: 12 V DC
- Power Consumption: 28W - Normal Operation
- Power Management: VESA DPMS
Agency Approvals
- Agency Approvals: RoHS Compliant FCC Class B CE UL/cUL C-Tick VCCI CCC
Other
- Additional Information: Color: 16 Millions Colors Viewing Angle: Horizontal: 150° Vertical: 135°
Warranty
- Manufacturer Warranty: 3 Year(s) Limited
