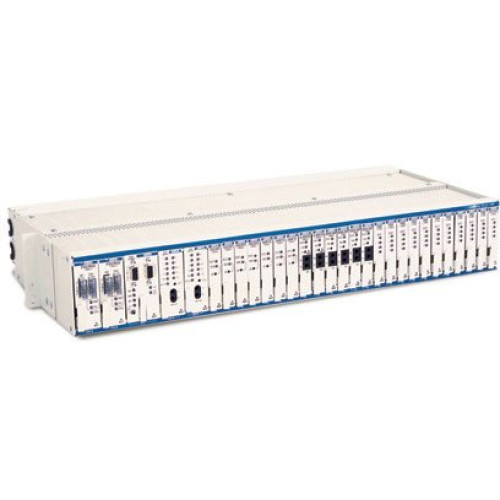

Adtran Total Access 1500 Data Networking
Part #: 1180007L3 | SKU: ADT40114

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500’s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran Total Access 1500 Data Networking

Part Details: Adtran PSU/RGU Power Module - -48 V DC

Need a different version of the Adtran Total Access 1500 Accessory? View all 15 configurations

Additional Information

Manufacturer AIDC	Adtran
Model Name	Total Access 1500

Adtran Total Access 1500 Specs (pdf)

General Information

Product Type: Power Module
Brand Name: Adtran
Manufacturer: Adtran
Product Name: PSU/RGU Power Module

Physical Characteristics

Height: 3.1"
Width: 1"
Depth: 10.1"
Weight (Approximate): 1 lb

Power Description

Current: 9 A
Input Voltage Range: -42.3 V DC to -56 V DC
Frequency: 20 Hz Output
Input Voltage: -48 V DC
Output Voltage:
- 3.2 V DC to 3.6 V DC
- 4.9 V DC to 5.5 V DC
- -7.5 V DC to -12 V DC
- -22 V DC to -36 V DC
- 0 V AC to 120 V AC

Other

Compatibility:
- Total Access 1500 19-inch Chassis
- Total Access 1500 23-inch Chassis

Extended Details
