Adtran Total Access 1500 Data Networking
Part #: 1180435L1 | SKU: ADT40136

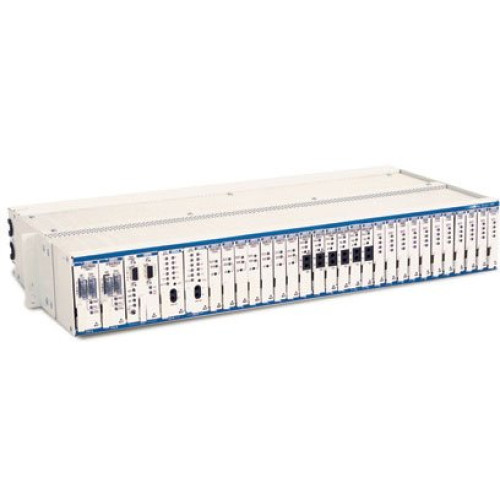

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500’s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran Total Access 1500 Data Networking

Part Details: Adtran Total Access 1500 Quad RS-232 Module - 4 x RS-232 Serial

Need a different version of the Adtran Total Access 1500 Accessory? View all 15 configurations

Additional Information

Manufacturer AIDC	Adtran
Model Name	Total Access 1500

Adtran Total Access 1500 Specs (pdf)

General Information

Product Type: Expansion Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180435L1
Product Name: Total Access 1500 Quad RS-232 Module
Product Line: Total Access

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 2.3" Height x 0.7" Width x 9.1" Depth

Interfaces/Ports

Interfaces/Ports: 4 x RS-232 Serial
Interfaces/Ports Details:
- 1 x DB-50 Port
- 4 x DB-25 Connector RS-232 Serial

Other

Package Contents:
- Total Access 1500 Quad RS-232 Module
- Total Access 1500 Quad RS-232 Module Installation and Maintenance Practice
- Total Access 1500 Quad RS-232 Module
- Total Access 1500 Quad RS-232 Module Installation and Maintenance Practice
Certifications & Standards:
- NEBS: GR-63-CORE, GR-1089-CORE (type I equipment)
- UL: 60950
Additional Information:
- Asynchronous or synchronous subrate multiplexer
- Port 1 supports rates up to 64 kbps
- Ports 2-4 support rates up to 38.4 kbps

Management & Protocols

Management:
- Network and DTE loopbacks on a per port basis
- SNMP support
Protocols: SNMP

Environmental Conditions

Humidity: 95% Maximum Non-condensing Relative Humidity
Temperature:
- -40°F (-40°C) to 149°F (65°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage

Warranty

Limited Warranty: 5 Year

Media & Performance

Data Transfer Rate: Up to 64 Kbps RS-232 Serial

Power Description

Input Current: 32 mA-48 V DC

Controls/Indicators

Status Indicators: Label: 1 thru 4
