| Manufacturer AIDC | Adtran |
|---|---|
| Model Name | NetVanta 3430 |

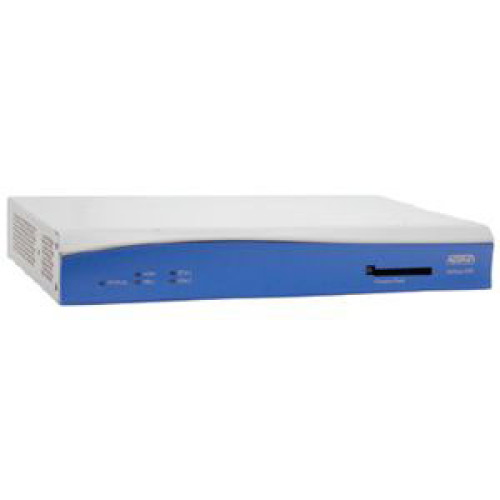

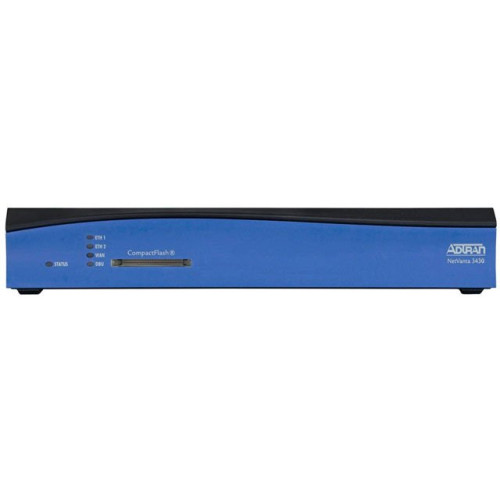

Adtran NetVanta 3430 Specs
General Information
- Product Type: Router
- Brand Name: Adtran
- Manufacturer: Adtran
- Product Model: 3430
- Product Name: NetVanta 3430 Modular Access Router
- Product Line: NetVanta
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.8"
- Width: 11.8"
- Depth: 7.5"
- Form Factor: Rack-mountable
- Weight (Approximate): 4 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 2
- Total Number of Ports: 2
- Management Port: Yes
Management & Protocols
- Security Features:
- Denial of Service (DoS)
- Content Filtering
- Firewall:
- Stateful Inspection Firewall
- Denial of Service (DoS) Protection
- Access Control Lists
- Application Level Gateways (ALGs)
- Network Address Translation:
- Basic NAT (1:1), NAPT (Many:1), and Port Translation
- NAT compatible SIP ALG
- Virtual Private Network (VPN):
- IPSec Tunnel Mode: 500 Tunnels
- Encryption: DES, 3DES, and AES
- Diffie Hellman Group Support: Group 1: MODP 768 and Group 2: MODP 1024
- Hash Algorithms: MD5-HMAC and SHA1-HMAC
- Authentication Mechanisms: XAUTH, Digital certificates, Pre-shared keys, and Secure ID
- Key Management: IKE (ISAKMP/Oakley)
- IKE Modes: Main and Aggressive, Dead Peer Detection, NAT Traversal V2
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: Power Supply
Other
- Additional Information:
- Feature-rich ADTRAN Operating System (AOS)
- CompactFlash slot for downloading configuration files and new firmware
Memory
- Flash Memory: 32 MB
- Standard Memory: 128 MB
- Memory Card Supported: CompactFlash (CF) Card
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: NIM/DIM
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-TX
Warranty
- Limited Warranty: 5 Year
