| Manufacturer AIDC | Adtran |
|---|---|
| Model Name | Networking |
General Information
- Product Type: Data Multiplexer
- Product Series: MX2800
- Brand Name: Adtran
- Manufacturer: Adtran
- Product Model: MX2800 M13

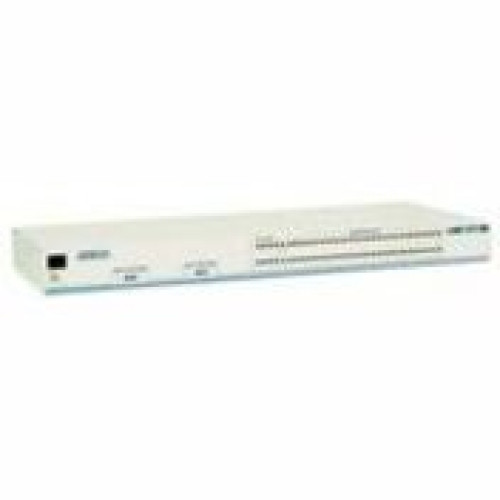

- Product Name: MX2800 M13 Multiplexer DS3 AC Non-Redundant
Physical Characteristics
- Height: 1.7"
- Width: 17"
- Depth: 7.9"
- Form Factor: Rack-mountable
- Weight (Approximate): 5.50 lb
- Rack Width: 19"
Interfaces/Ports
- Number of BNC Ports: 2
- Management Port: Yes
- Number of RJ-48 Ports: 1
- Number of Amphenol Ports: 2
Other
- Package Contents:
- MX2800 M13 Multiplexer DS3 AC Non-Redundant
- DC or AC power supply
- Controller card
- 8-pin to 8-pin modular cable
- 8-pin modular to DB-9 female connector
- Two 4-position terminal lug connectors
- 3-position terminal lug connector
- Six-foot AC power cable
- Mounting ears and screws for 19-inch or 23-inch rack installation
- User manual or CD containing the User Manual
- MX2800 M13 Multiplexer DS3 AC Non-Redundant
- DC or AC power supply
- Controller card
- 8-pin to 8-pin modular cable
- 8-pin modular to DB-9 female connector
- Two 4-position terminal lug connectors
- 3-position terminal lug connector
- Six-foot AC power cable
- Mounting ears and screws for 19-inch or 23-inch rack installation
- User manual or CD containing the User Manual
- Additional Information:
- The craft port, an 8-pin modular jack, provides connection to a VT100 EIA-232 compatible interface
- DSX-1 Interface:
- Line build out: 0 to 655 feet
- Line rate: 1.544 Mbps
- Line code: AMI or B8ZS
Media & Performance
- Maximum Data Transfer Rate: 44.74 Mbps
- Media Type Supported:
- Coaxial
- Twisted Pair
- Network Technology Supported: 10Base-T
- Connectivity Technology: Wired
Warranty
- Limited Warranty: 10 Year
