General Information
- Product Type: Router
- Product Series: 600
- Brand Name: Adtran
- Manufacturer: Adtran
- Product Model: 600R

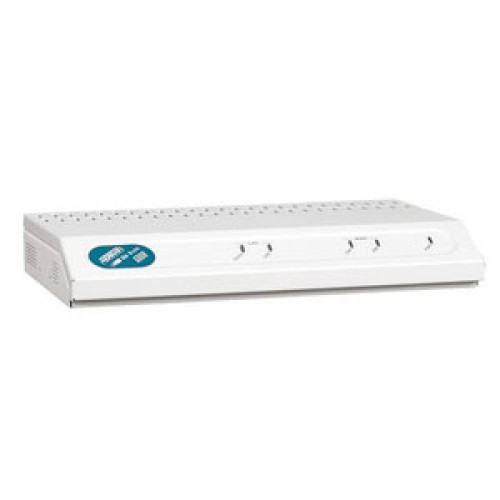

- Product Name: Total Access 600R Router
- Product Line: Total Access
Physical Characteristics
- Height: 2"
- Width: 11.3"
- Depth: 7.5"
- Weight (Approximate): 2 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 1
- Total Number of Ports: 1
- Management Port: Yes
- Number of Serial Ports: 1
- Number of RJ-48 Ports: 1
Other
- Certifications & Standards:
- RFC 1490
- RFC 1406
- RFC 1213
- RFC 1315
- IEEE 802.3
- 802.1d
- Agency approvals:
- UL1950
- CUL
- FCC Part 15 (Class A)
- Additional Information:
- Integrated T1/FT1 CSU/DSU
- Carrier class durable housing
- Easy to navigate menu system
- Downloadable configuration files
- Framing: D4 (SF)/ESF
- Line Code: AMI / B8ZS
- Input Signal: 0 to -36 dB
- DS0 Assignment: User selectable
- Timing: Loop and local
- Support for both point-to-point and point-tomultipoint networks using up to 10 PVCs
- Encapsulation (Multiprotocol Over Frame Relay)
- LMI types: LMI, ANSI (Annex D), CCITT (Annex A) and Static
- Van Jacobson (VJ) header compression
- Local Loopbacks
- Line and payload
- Remote Loopbacks
- Line and payload
- CSU loopback
- Error Counts
- ES, SES, SEF, FS, LCV, SLP and UAS
- Alarm Status: Loss of signal, red alarm, yellow alarm, blue alarm
Management & Protocols
- Security Features:
- PAP, CHAP, EAP and Radius
- Packet Filtering by source and destination IP address, source and destination port number, MAC address, protocol or pattern
- Multi-layer password protection
- Telnet security: Access list and password protection
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology:
- 10/100Base-TX
- DSX-1
- T1/FT1
Media & Performance
- Carrier Supported: T-carrier
Warranty
- Limited Warranty: 10 Year
Power Description
- Input Voltage: 110 V AC
