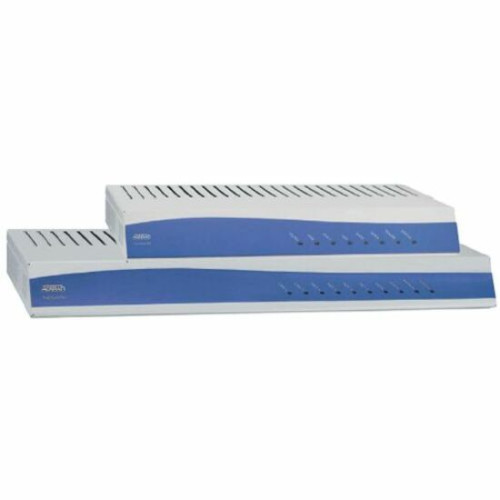

Adtran Total Access 900 Series Data Networking
Part #: 4242924L1 | SKU: ADT40232

Adtran offers a wide variety of solutions for converged voice/data services. The Total Access 900 Series of T1 and Multi-T1 IP Business Gateways are designed for carrier Ethernet and SIP/MGCP Voice over IP (VoIP) networks. These products feature all of the same robust routing and voice features of the widely deployed Total Access Integrated Access Devices (IADs), along with a host of new features and functions that enable costeffective, reliable IP service delivery. These devices use the Adtran Operating System (AOS) to simplify management and administration. Multiple models offer fexibility for varied applications from PRI delivery and trunking services to Hosted IP PBX offering

Adtran Total Access 900 Series Data Networking

Part Details: Adtran Total Access 924e VoIP Multiservice Access Gateway - 4 x T1/FT1 WAN, 2 x 10/100Base-TX LAN, 24 x FXS, 1 x , 1 x

Need a different version of the Adtran Total Access 900 Series Data Networking? View all 10 configurations

Additional Information

Manufacturer	Adtran
Model Name	Total Access 900 Series

Adtran Total Access 900 Series Specs (pdf)

General Information

Product Type: Router
Product Series: 900e
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 924e
Product Name: Total Access 924e VoIP Multiservice Access Gateway
Product Line: Total Access

Physical Characteristics

Compatible Rack Unit: 1U
Height: 1.7"
Width: 17.2"
Depth: 8.5"
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Weight (Approximate): 5.50 lb

Interfaces/Ports

Total Number of Ports: 30

Management & Protocols

Security Features:
- NAT
- SSH
- PAP and CHAP
- Stateful Inspection Firewall
- Denial of Service (DOS) Protection
- Access Control Lists
- Application Level Gateways
- Packet Filtering

Other

Additional Information:
- VoIP Protocol: SIP
- G.168 Echo Cancellation
- DSX-1 for PBX connectivity
- CODECs:
- G.711-64k PCM
- G.729a-8k CS-ACELP

Network & Communication

Ethernet Technology: Fast Ethernet
VoIP Supported: Yes

Memory

Flash Memory: 16 MB
Standard Memory: 64 MB

Power Description

Input Voltage: 110 V AC

Media & Performance

Carrier Supported: T-carrier

Extended Details

Adtran Total Access 900 Series Data Networking Part #: 4242924L1 | SKU: ADT40232
