Newer Version Is Available

M5900, Batch Kit, 1D Laser, Alphanumeric Keypad, 32MB/16MB. Includes USB cable, Battery, and Program generator. Charger not included. See accessories.
Free Shipping

Product was successfully added to your shopping cart.
29878 AML

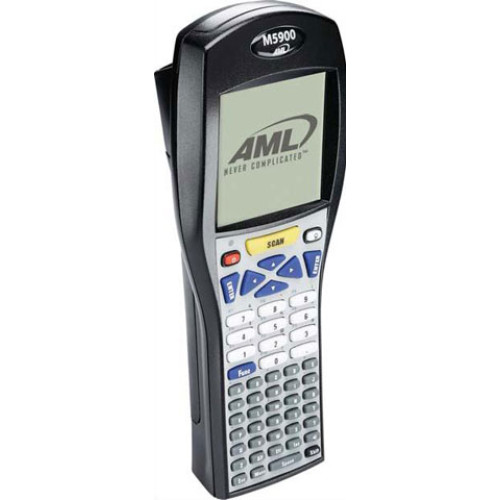

M5900-0101-1 - AML M5900 Handheld Computer

M5900, Batch Kit with standard laser scanner and 32MB/16MB. Includes In-Line Charger (Part# ACC-5910).
Free Shipping


Durable, easy to use, and packed with big business functionality, the M5900 portable data terminal is an ideal solution for everyday, all day data collection applications - including inventory control, factory floor management, price verification, shipping/receiving, asset tracking and more. Each M5900 Series portable data terminal includes all the software development tools required to quickly and efficiently put the portable data terninal to work in your business. The M5900 terminal is preloaded with six everyday data collection applications that give you the capability to scan barcodes and collect basic data.
  • Durable, ergonomic design
  • Graphical 160 x 160 backlit LCD display
  • High performance 200 MHz ARM9 Processor
  • SQLite database engine
  • Rechargeable, high capacity 2600 mAh Lithium-Ion battery
  • 55 key alphanumeric or 35 key numeric keypad
  • On-board Program Generator (OPG)
  • Preloaded with six common data collection applications
  • PC-based M5900 Program Generator
  • Multiple integrated scan engine options, including 2D Imager
  • RS-232 and USB ports

Additional Information

RAM Memory 32 MB
Operating System Proprietary
Display Resolution 160 x 160
Scanner Type Laser
Data Collection Type Batch
Manufacturer AML

Recommended Accessories

  • AML M7170 Accessories (ACC-7036)

    Vehicle Mount charging cradle. Includes cigarette-style adapter which can be either plugged in or cut and hardwired to forklift battery. Compatible with M5900, M7220, M7225, M7500, M7221, M71V2. Includes cigarette-style adapter which can be either plugged in or cut and hardwired to forklift battery.
    Ships In 3-5 Days
    Free Shipping
    - +
  • AML M7225 Accessories (CAS-7225HS)

    Handstrap for the M7XXX, M5XXX series
    Ships In 3-5 Days
    Free Shipping
    - +
  • AML M5900 Accessories (ACC-5925)

    Single Slot Charging & Communications Cradle. For use with M71V2, M7220, M7221, M5900.
    Ships Today
    Free Shipping
    - +
  • AML M5900 Accessories (900-5900-10)

    Ships In 3-5 Days
    Free Shipping
    - +
  • AML M7100 Accessories (CAS-7101H)

    Holster with Belt For M5900, M7220, M722
    Ships Today
    Free Shipping
    - +

Recommended Warranties

Technical Information

  • Operating System: Linux Embedded
  • Processor: ARM9 200MHz
  • Data Collection Type: Batch
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Bookland EAN
    • Codabar
    • Code 11
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E

General Information

  • Manufacturer: AML
  • Product Name: M5900 Portable Data Terminal

Physical Characteristics

  • Display: Monochrome Backlight - 20 Lines x 20 Characters - LCD
  • Display Resolution: 160 x 160
  • Keyboard: 55 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Weight: 16 oz

Environmental Conditions

  • Environmental Sealing: IP51
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 50°C (122°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • 15kVdc Air Discharge
    • 4kVdc Contact Discharge
  • Drop Spec: 4' To Concrete


  • RAM Memory: 32MB
  • Flash Memory: 16MB


  • Package Contents: M5900 Portable Data Terminal Battery In-Line Charger Documentation CD with Program Generator USB Cable

Agency Approvals

  • Agency Approvals: EMI/RFI: FCC Part 15 Class A Laser Safety: CDRH Class II IEC Class 2


  • Manufacturer Warranty: 1 Year(s) Limited
