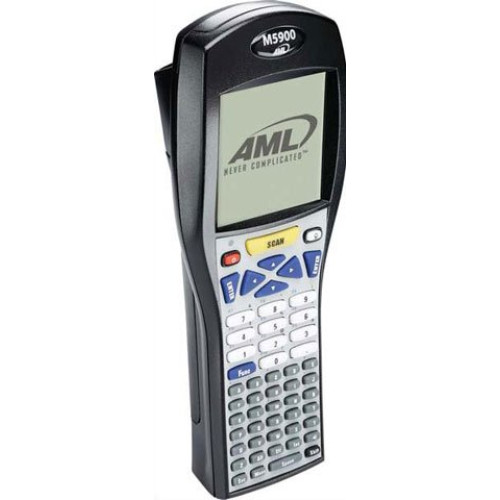

AML M5900 Mobile Computer
Part #: M5900-0101-2 | SKU: AML29879

Durable, easy to use, and packed with big business functionality, the M5900 portable data terminal is an ideal solution for everyday, all day data collection applications - including inventory control, factory floor management, price verification, shipping/receiving, asset tracking and more. Each M5900 Series portable data terminal includes all the software development tools required to quickly and efficiently put the portable data terninal to work in your business. The M5900 terminal is preloaded with six everyday data collection applications that give you the capability to scan barcodes and collect basic data.

AML M5900 Mobile Computer

Part Details: M5900, Portable Data Terminal, Batch Kit with standard laser scanner and 32MB RAM/16MB Flash. Includes Single Slot Charging & Communications Cradle.

Need a different version of the AML M5900 Mobile Computer? View all 12 configurations

Additional Information

Display Resolution	160 x 160
IP Rating	IP51
Keypad	55 Keys
Manufacturer AIDC	AML
Model Name	M5900
Operating System	Proprietary
Operating Temperature	14 F - 122 F (-10 C - 50 C)
Processor	ARM Holdings ARM9 (200 MHz)
RAM Memory	32 MB
Scanner Type	Laser

AML M5900 Specs (pdf)

Technical Information

Operating System: Linux Embedded
Processor: ARM9 200MHz
Data Collection Type: Batch
Scanner Type: Laser Standard Range
Symbologies Supported:
- Bookland EAN
- Codabar
- Code 11
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- EAN-8
- EAN-13
- EAN-128
- Interleaved 2 of 5
- MSI/PLESSEY
- RSS-Expanded
- RSS-Limited
- RSS-14
- UPC/EAN Supplementals
- UPC-A
- UPC-E

General Information

Manufacturer: AML
Product Name: M5900 Portable Data Terminal

Physical Characteristics

Display: Monochrome Backlight - 20 Lines x 20 Characters - LCD
Display Resolution: 160 x 160
Keyboard: 55 Key Alphanumeric Integrated
Battery Capacity: 2200 mAh
Battery Type: Lithium Ion - Included
Weight: 16 oz

Environmental Conditions

Environmental Sealing: IP51
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 50Â°C (122Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 15kVdc Air Discharge
- 4kVdc Contact Discharge
Drop Spec: 4' To Concrete

Memory

RAM Memory: 32MB
Flash Memory: 16MB

Other

Package Contents: M5900 Portable Data Terminal Battery Charging Cradle Documentation CD with Program Generator USB Cable

Agency Approvals

Agency Approvals: EMI/RFI: FCC Part 15 Class A Laser Safety: CDRH Class II IEC Class 2

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
