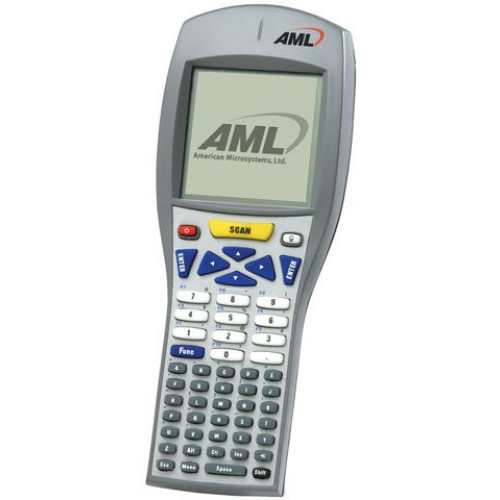

AML M7100 Mobile Computer
Part #: M7100-0201-01 | SKU: AML27773

The AML M7100 Wireless Hand-Held Terminal maximizes flexibility, performance, and value in mobile data collection computing. Built tough and optimized for cost-effectiveness, the M7100 is an ideal solution for real-time, information-intensive applications in retail, distribution, warehousing, manufacturing, and health care. The AML M7100 is designed to provide maximum flexibility across a wide range of data collection applications. The M7100 features an easy-to-use 55-key alphanumeric keypad, multiple integrated scanner options (both 1D and 2D), RS-232 and infrared communication ports. 16MB RAM is standard, plus the M7100 includes 4MB of flash ROM. Battery storage is also enhanced, allowing a full eight-hour shift without recharging.

AML M7100 Mobile Computer

Part Details: M7100, Wireless Terminal, 802.11b, Long Range Laser Scanner and 32MB RAM/16 MB Flash with 5250

Additional Information

Display Resolution 160 x 160
Manufacturer AML
Model Name M7100
Operating System Linux
RAM Memory 32 MB
Scanner Type Laser

Technical Information

  • Operating System: Linux Embedded
  • Processor: Intel StrongArm SA1110 133MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • EAP-PEAP
    • EAP-TLS
    • EAP-TTLS
    • PSK-TKIP
  • Scanner Type: Laser Long Range
  • Symbologies Supported:
    • Code 39
    • UPC
    • EAN
    • Interleaved 2 of 5
    • Codabar
    • Code 128
    • Code 93
    • MSI/PLESSEY
    • Code 11
    • UPC/EAN Supplementals

General Information

Physical Characteristics

  • Display: Grayscale Backlight - LCD
  • Display Resolution: 160 x 160
  • Keyboard: 55 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.5" (89mm) x 8.875" (225mm) x 2.25" (57mm)
  • Weight: 18.5 oz

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 50°C (122°F) Storage
  • Humidity: 5 to 90% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-4kVdc Contact Discharge
  • Drop Spec: 5' To Concrete

Other

  • Additional Information:
    • IrDA
    • RS-232
    • TWINCLIENT 5250
  • Package Contents:
    • M7100 Handheld Terminal Battery Documentation CD
    • M7100 Handheld TerminalBatteryDocumentation CD

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 17dBm
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 Class A
    • CDRH Class II
    • IEC Class 2
    • Mexico NOM/NYCE - NOM 019 SCFI

Memory

  • RAM Memory: 32MB
  • Flash Memory: 16MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: AML M7100 Mobile Computer

  • AML M7100 Spare Parts
    Part #: CAS-7101H | SKU: AML29888

    Holster with Belt For M5900, M7220, M722
  • AML M7100 Accessory
    Part #: ACC-7025 | SKU: AML16546

    M7100 Cradle (Single Slot Charging & Communications)
  • AML M7100 Spare Parts
    Part #: ACC-7035 | SKU: AML16547

    4-Position Terminal Charger
