Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Cooling System
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

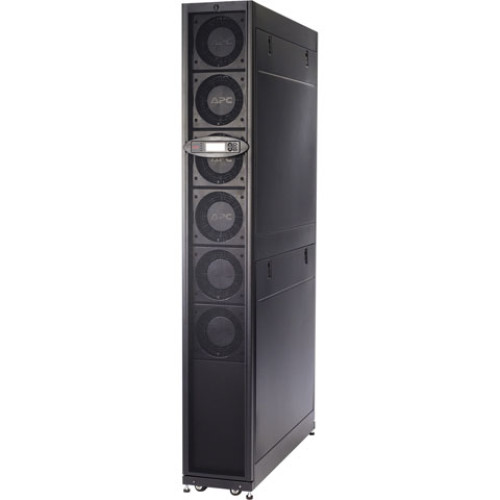

- Product Name: InRow RD Cooling System
- Product Line: InRow RD
Physical Characteristics
- Height: 78.4"
- Width: 11.8"
- Depth: 42.1"
- Color: Black
- Weight (Approximate): 404 lb
Other
- Package Contents:
- InRow RD Cooling System
- Installation Guide
- Operations and Maintenance Manual
- InRow RD Cooling System
- Installation Guide
- Operations and Maintenance Manual
- Additional Information:
- Nominal Cooling Capacity: 9.90 kW
- Coolant: R410A
- Entering Air Relative Humidity: 32.0%
- Entering Air Temperature: 85.0 °F (29.44 °C)
- Compressor Type: Scroll
- Air Discharge Patterns: Horizontal
- Intake Air: Rear Return
- Air Flow: 2290.0 CFM (1080.76 lps)
- Condensate Pump Capacity: 2.600 gal/hour (0.000 lps)
- Nominal Input Voltage: 220,240
- Input Power: 4400 Watts
- Input Frequency: 50 Hz
- Rack Height: 42U
- Control Panel: Multi-function LCD Status and Control Console
- Audible Alarm: Audible and Visible Alarms Prioritized by Severity
Warranty
- Limited Warranty: 1 Year
