| Manufacturer | APC |
|---|---|
| Model Name | Parts |
General Information
- Product Type: KVM Switchbox
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

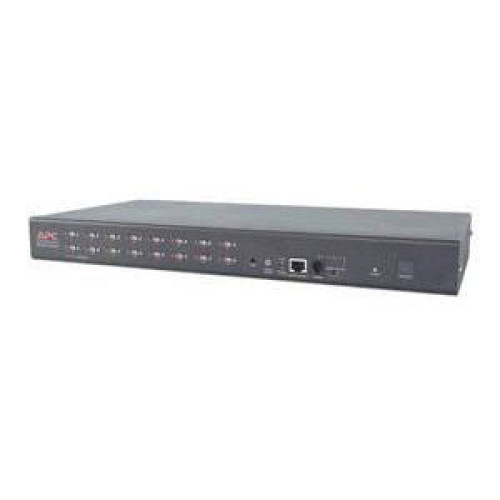

- Product Name: 16 Port Multi-Platform Analog KVM Switch
Technical Information
- Number of Computers Supported: 16
- Number of Local Users Supported: 1
- Minimum Scan Interval: 1 Second
Physical Characteristics
- Height: 1.8"
- Width: 17"
- Depth: 8.3"
- Form Factor: Rack-mountable
- Weight (Approximate): 10 lb
- Color: Black
- Rack Height: 1U
Interfaces/Ports
- VGA: Yes
- Number of Network (RJ-45) Ports: 1
- Network (RJ-45): Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
- Number of VGA Ports: 1
Other
- Platform Supported: PC
- Package Contents:
- 1 x KVM Switch AP5202 (16 port)
- 1 x Configuration cable
- 1 x L5-15 to IEC power cable
- 2 x Brackets for a 19-inch enclosure
- 1 x Installation Manual
- 1 x KVM Switch Utility CD
- 1 x Warranty card
- 1 x KVM Switch AP5202 (16 port)
- 1 x Configuration cable
- 1 x L5-15 to IEC power cable
- 2 x Brackets for a 19-inch enclosure
- 1 x Installation Manual
- 1 x KVM Switch Utility CD
- 1 x Warranty card
- Certifications & Standards:
- FCC Part 15 Class A
- ICES Class A: Canadian ICES-003
- VCCI Class A
- Additional Information:
- The "keep-alive" feature assures all the keyboard and mouse connections work properly if the KVM Switch loses power temporarily.
- Auto-sensing of KVM station positions for serially-connected installations, which are indicated on the front panel LED.
- Port names automatically reconfigure when the station sequence is changed.
- No software is required; select a computer by using the On-Screen Display (OSD) menu or Hot Key combination.
- AutoScan offers monitoring of connected computers.
Power Description
- Power Consumption: 8 W
- Input Voltage:
- 240 V AC
- 9 V DC
Video
- Maximum Video Resolution: 1920 x 1440
- Graphic Mode:
- VGA
- SVGA
Warranty
- Limited Warranty: 2 Year
