| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Input Receptacles: Hubbell CS8365C
- Output Receptacles:
- 24 x IEC 320-C13
- 4 x IEC 320-C19
- 2 x NEMA L6-30R
- Protection Type: Overload Protection
General Information
- Product Type: PDU
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

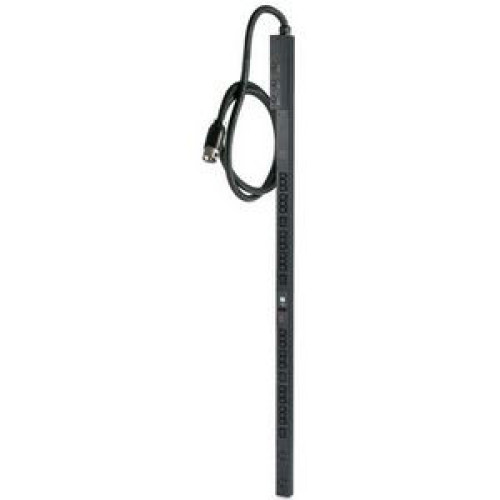

- Product Name: Metered Rack 14.4kW PDU
- Product Line: Metered Rack
Physical Characteristics
- Cord Length: 10
- Height: 70"
- Width: 2.2"
- Depth: 3.8"
- Color: Black
- Weight (Approximate): 22.80 lb
Other
- Package Contents:
- Metered Rack 14.4kW PDU
- Cord Retention Bracket(s)
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- RS-232 Configuration Cable
- Toolless Mounting Kit
- Metered Rack 14.4kW PDU
- Cord Retention Bracket(s)
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- RS-232 Configuration Cable
- Toolless Mounting Kit
- Certifications & Standards:
- cUL Listed
- CSA
- FCC Part 15 Class A
- ICES-003
- Industry Canada
- METI Denan
- UL 60950
- UL Listed
- Additional Information:
- Alarm Thresholds
- Flash Upgradeable
- High Power Density
- Information Displays
- Local Current Monitoring Display
- Network Management
- Remote Current Monitoring
- Toolless Mounting Capability
- Vertical Mounting Capability
Power Description
- Power Rating: 14.40 kVA
- Input Voltage: 208 V AC
- Output Voltage: 208 V AC
Warranty
- Limited Warranty: 2 Year
