| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Number of Protected Output Receptacles: 16
- Input Receptacles: 1 x IEC 309
- Output Receptacles: 16 x IEC 320-C13
- Protection Type:
- Overload Protection
- Password Protection
General Information
- Product Type: PDU
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

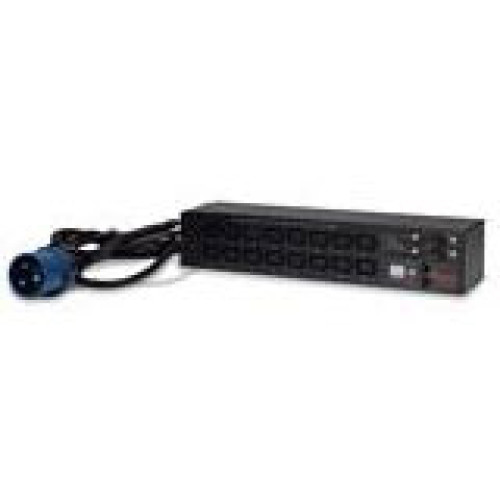

- Product Name: Switched Rack 7.36kVA PDU
- Product Line: Switched Rack
Physical Characteristics
- Cord Length: 10
- Height: 3.5"
- Width: 17.5"
- Depth: 4.5"
- Color: Black
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 9.90 lb
Interfaces/Ports
- Modem (RJ-11): Yes
- Modem (RJ-12): Yes
Other
- Package Contents:
- Switched Rack 7.36kVA PDU
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Switched Rack 7.36kVA PDU
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Certifications & Standards:
- AS/NZS 3548 (C-Tick) Class A
- CE
- EN 55022 Class A
- EN 55024
- EN 60950
- EN 61000-3-2
- VDE
- Additional Information: Overload protection: 16 A
Management
- Management:
- Switched Rack PDU can be monitored through Web, Telnet, SNMP, or InfraStruXure Manager interfaces
- Web interface: As your browser, you can use Microsoft Internet Explorer 5.0 (and higher) or Netscape 4.0.8 (and higher, except Netscape 6.x) to access the Management Card through its Web interface
- SNMP: Add the PowerNet MIB to a standard SNMP MIB browser, you can use that browser for SNMP access to the Rack PDU
- Telnet: From any computer on the same subnet as the Rack PDU, you can use ARP and Ping to assign an IP address to the Rack PDU, and then use Telnet to access that Rack PDU s control console and configure the needed TCP/IP settings
Power Description
- Power Rating: 7.36 kVA
- Input Voltage: 230 V AC
- Output Voltage: 230 V AC
- Circuit Breaker: Yes
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
