APC Back-UPS Series UPS
Part #: AP8661 | SKU: APC192798

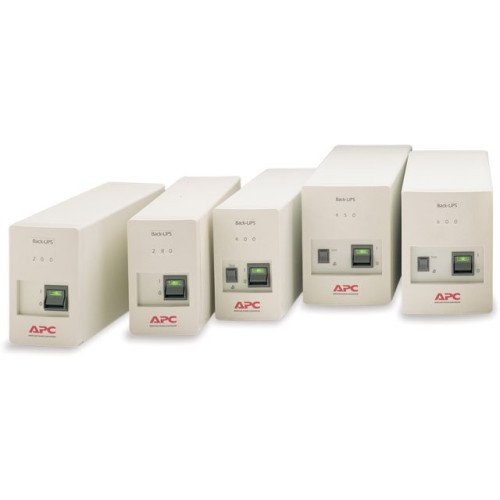

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: Rack PDU 2G, Metered by Outlet W/Switching,ZeroU,5.7kW,208V

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $4,050.00 Price: $3,369.29

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: PDU
Product Series: AP8000
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: AP8661

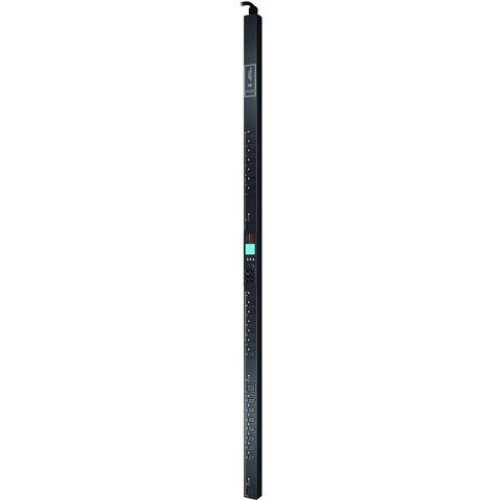

Product Name: Switched Rack AP8000 24-Outlets 5.7kW PDU
Product Line: Switched Rack

Technical Information

Input Receptacles: NEMA L21-20P
Output Receptacles:
- 3 x IEC 60320 C19
- 21 x IEC 60320 C13

Physical Characteristics

Number of Cord/Cable: 1
Height: 72"
Width: 2.2"
Depth: 2"
Form Factor: Rack-mountable
Weight (Approximate): 15.70 lb

Other

Package Contents:
- Switched Rack AP8000 24-Outlets 5.7kW PDU
- CAN Port Terminator
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Sample Locking IEC Power Cord
- Serial Configuration Cable
- Switched Rack AP8000 24-Outlets 5.7kW PDU
- CAN Port Terminator
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Sample Locking IEC Power Cord
- Serial Configuration Cable
Green Compliant: Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS

Management

Management:
- Protocols:
- Web
- SNMP
- Telnet

Power Description

Power Rating: 5.70 kVA
Input Voltage: 208 V AC
Output Voltage: 208 V AC

Warranty

Limited Warranty: 2 Year

Extended Details

APC Back-UPS Series UPS Part #: AP8661 | SKU: APC192798
