| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Receptacles:
- 1 x Hard Wire 4-wire 3PH + G
- 1 x Hard Wire 5-wire 3PH + N + G
- 1 x Screw Terminal
- Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
- Interfaces/Ports: RS-232 Serial
General Information
- Product Type: Dual Conversion Online UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

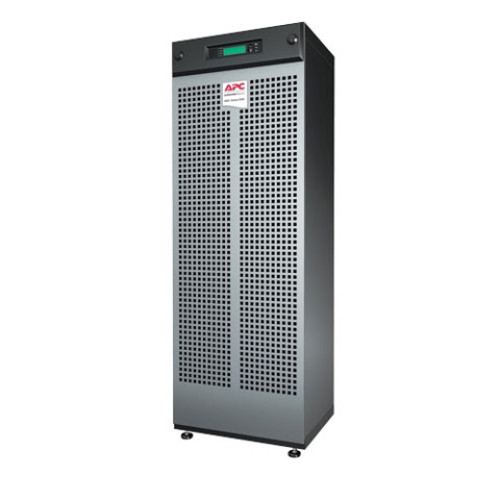

- Product Name: MGE Galaxy 3500 20 kVA Tower UPS
Physical Characteristics
- Height: 58.7"
- Width: 20.6"
- Depth: 33"
- Form Factor: Tower
- Weight (Approximate): 1384 lb
Interfaces/Ports
- Interfaces/Ports: RS-232 Serial
Other
- Package Contents:
- MGE Galaxy 3500 20 kVA Tower UPS
- 4 x Battery Modules ship installed
- Bolt Down Brackets
- CD with Software
- Installation Guide
- Power Modules ship installed
- Smart UPS Signalling RS-232 Cable
- Start-Up Service
- User Manual
- Web/SNMP Management Card
- MGE Galaxy 3500 20 kVA Tower UPS
- 4 x Battery Modules ship installed
- Bolt Down Brackets
- CD with Software
- Installation Guide
- Power Modules ship installed
- Smart UPS Signalling RS-232 Cable
- Start-Up Service
- User Manual
- Web/SNMP Management Card
Power Description
- Input Voltage Range:
- 208 V AC 3-phase Nominal
- 160 V AC to 240 V AC Mains Operation
- Load Capacity: 20 kVA/16 kW
- Input Voltage: 220 V AC
- Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- 208 V AC 3-phase Nominal
- Frequency:
- 40 to 70 Hz Input
- 57 to 63 Hz Output
Management
- Network Management: SNMP Manageable Included
- Bypass Switch:
- Automatic
- Internal
- Maintenance
- Static
Battery Information
- Batteries: Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.31 Hour 16 kW Full Load
- 0.81 Hour 8 kW Half Load
- Battery Recharge Time: 5 Hour
Scalability
- Modules: 4 x Battery Module
Warranty
- Limited Warranty: 1 Year
