APC Back-UPS Series UPS
Part #: SBPSU10K30FC1M1-WP | SKU: APC82813

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: Accessories, Panel (Smart-UPS VT Maintenance Bypass Panel 10-30kVA)

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $5,615.00 Price: $4,675.88

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Bypass Switch
Brand Name: APC
Manufacturer: American Power Conversion Corp

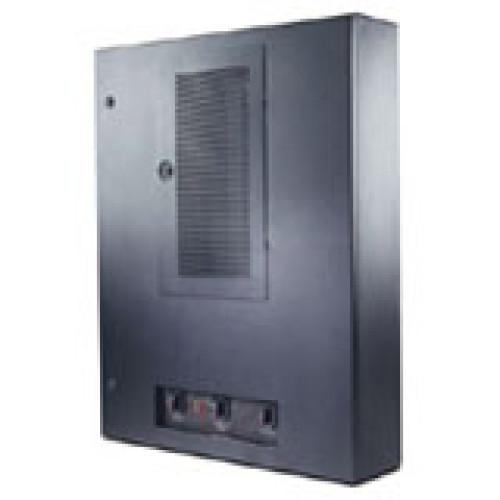

Product Name: 30kVA Wall Mountable Maintenance Bypass Panel

Technical Information

Receptacles: Hard Wire 5-wire 3PH + N + G
Plug/Connector Type: Hard Wire 5-wire 3PH + N + G

Physical Characteristics

Height: 29.5
Width: 37.4"
Depth: 7.8"
Form Factor: Wall Mountable
Weight (Approximate): 120 lb

Power Description

Current:
- 92 A Input Current Per Phase
- 83.30 A Total Current Draw Per Phase
Load Capacity: 30 kVA
Input Voltage: 110 V AC
Output Voltage:
- 120 V AC 3-phase Nominal
- 208 V AC 3-phase Nominal
Input Voltage Range: 208 V AC3-phase Nominal
Frequency:
- 50 Hz
- 60 Hz

Other

Package Contents:
- 30kVA Wall Mountable Maintenance Bypass Panel
- User Manual
- 30kVA Wall Mountable Maintenance Bypass Panel
- User Manual
Additional Information: Standard Warranty: 1 Year Repair/Replace

Warranty

Limited Warranty: 1 Year

Extended Details

APC Back-UPS Series UPS Part #: SBPSU10K30FC1M1-WP | SKU: APC82813
