| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information

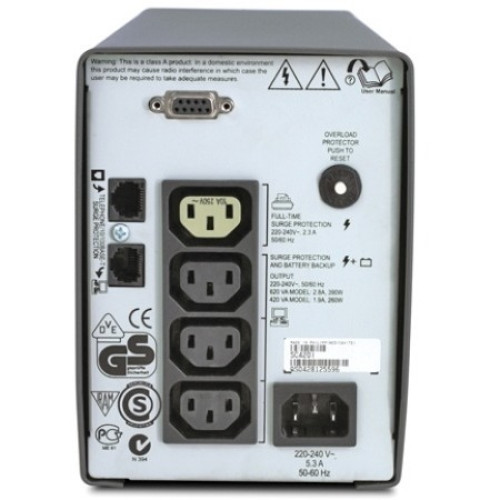

- Receptacles:
- 3 x IEC 320-C13
- 1 x IEC 320-C13
- 2
- Plug/Connector Type: IEC 320-C14
- Dataline Protection: RJ-45
- Emergency Power OFF: No
General Information
- Product Type: Line-interactive UPS
- Product Series: SC
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

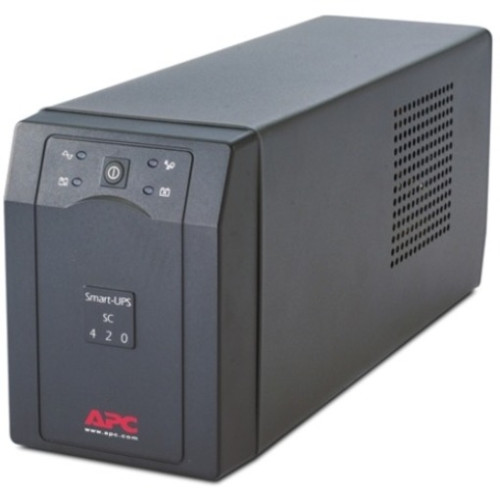

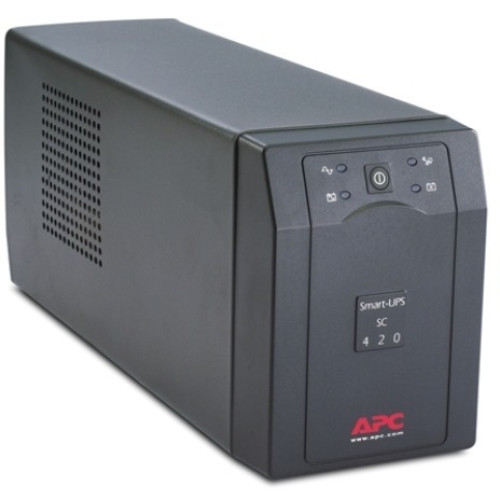

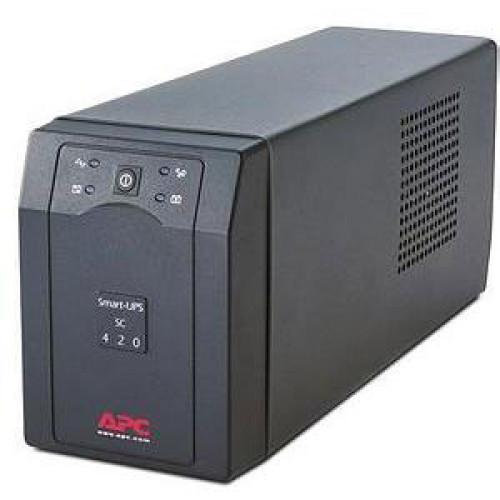

- Product Name: Smart-UPS SC 420VA
- Product Line: Smart-UPS
Physical Characteristics
- Height: 7"
- Width: 5"
- Depth: 15"
- Form Factor: Tower
- Weight (Approximate): 20 lb
- Color: Gray
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS SC 420VA
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- Smart-UPS SC 420VA
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- Certifications & Standards:
- CE
- EN 50091-1
- EN 50091-2
- GOST
- IEC 60950
- IRAM
- PCBC
- VCCI
- VDE
- UL 1449
- Additional Information:
- Automatic restart of loads after UPS shutdown
- Boost and Trim Automatic Voltage Regulation (AVR)
- Predictive failure notification
- Safety-agency approved
- Replacement battery cartridge quantity: 1
- Units per Pallet: 4
- This is an International Product
Power Description
- Load Capacity (VA): 420 VA
- Load Capacity (Watt): 260 W
- Input Voltage: 220 V AC
- Output Voltage: 230 V AC
- Circuit Breaker: Yes
- Surge Energy Rating: 320 J
Controls/Indicators
- Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Battery Information
- Backup/Run Time (Half Load): 13.50 Minute
- Backup/Run Time (Full Load): 5.50 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Management
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 50 BTU/h
Warranty
- Limited Warranty: 2 Year
