| Manufacturer | APC |
|---|---|
| Model Name | Smart-UPS Series |
Technical Information

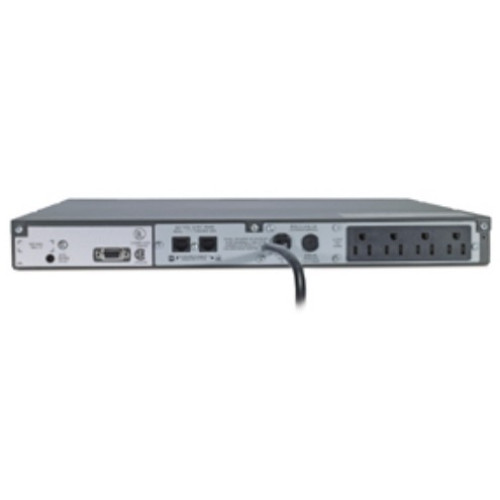

- Receptacles: 4 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Cord Length: 6 ft
- Dataline Protection:
- RJ-45
- RJ-11
- Emergency Power OFF: Optional
General Information
- Product Type: Line-interactive UPS
- Product Series: SC
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

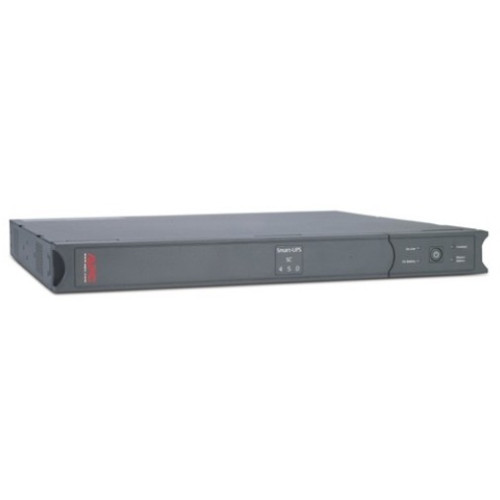

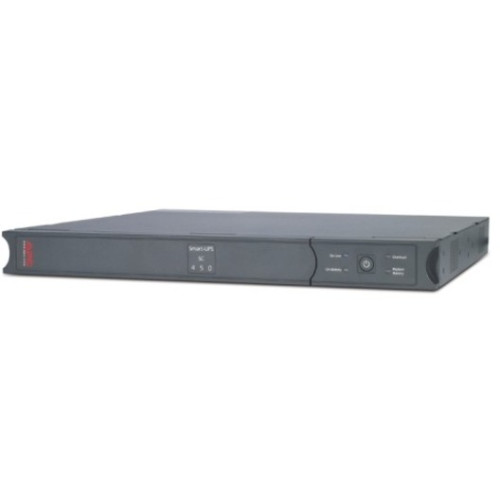

- Product Name: Smart-UPS SC 450VA Rackmount/Tower
- Product Line: Smart-UPS
Physical Characteristics
- Height: 2"
- Width: 17"
- Depth: 15"
- Rack Height: 1U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 24 lb
- Color: Gray
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS SC 450VA Rackmount/Tower
- CD with software
- Rack Mounting Brackets
- Smart UPS signalling RS-232 cable
- User Manual
- Smart-UPS SC 450VA Rackmount/Tower
- CD with software
- Rack Mounting Brackets
- Smart UPS signalling RS-232 cable
- User Manual
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- Additional Information:
- Front-access servicing
- Multiple mounting methods
- Rack/Tower convertible
- Boost and Trim Automatic Voltage Regulation (AVR)
- Power conditioning
Battery Information
- Backup/Run Time (Half Load): 19.40 Minute
- Backup/Run Time (Full Load): 5.90 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 450 VA
- Load Capacity (Watt): 280 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 400 J
Management
- Battery Management: Intelligent battery management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 34 BTU/h
Warranty
- Limited Warranty: 2 Year
