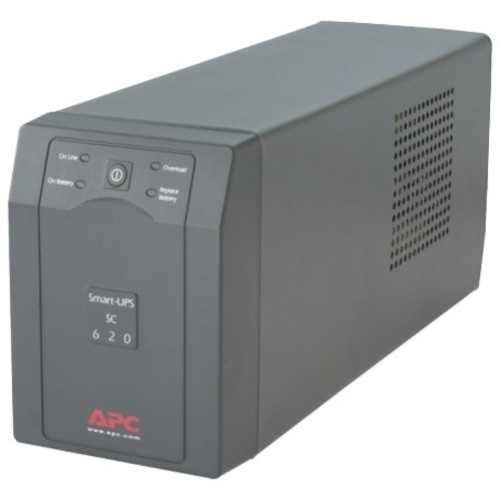

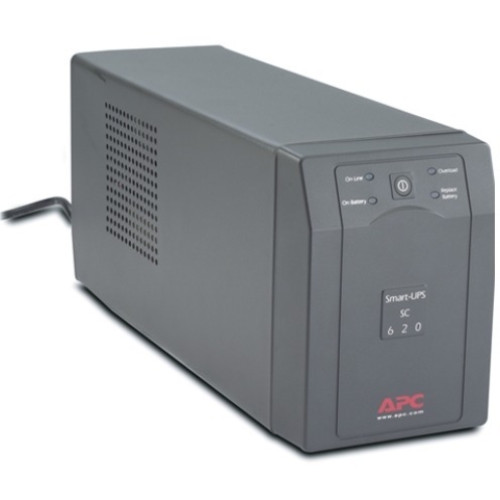

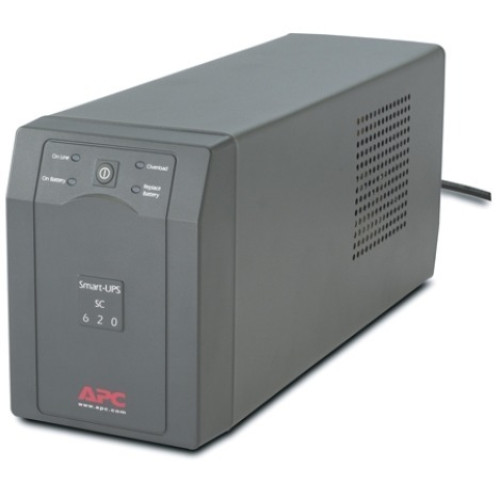

APC Smart-UPS Series UPS
Part #: SC620 | SKU: APC21682

The Smart-UPS Series lets you keep your data safe even when you're not there! The PowerChute plus software and the uninterruptible power supply (UPS) allow for your data to be properly saved and then your network operation system to be shut before the battery is discharged. A proactive defense against data loss.

APC Smart-UPS Series UPS

Part Details: Smart-UPS 620 Uninterruptible Power Supply (620VA with Signalling RS-232 Cable, Software CD-ROM, and User Manual)
MSRP: $400.00 Price: $339.88

Additional Information

Manufacturer APC
Model Name Smart-UPS Series

General Information

  • Product Type: Line-interactive UPS
  • Product Series: SC
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS SC 620VA
  • Product Line: Smart-UPS

Technical Information

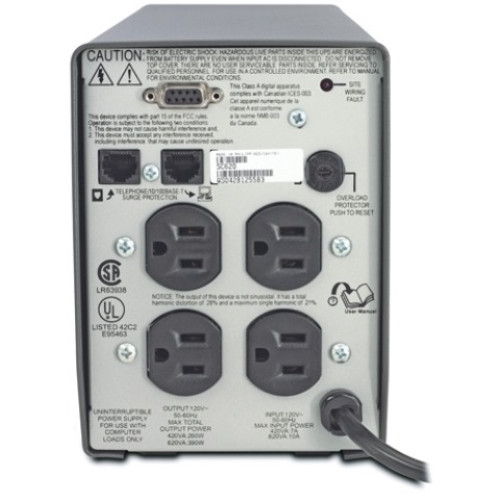

  • Receptacles: 4 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 6 ft
  • Dataline Protection: RJ-45
  • Emergency Power OFF: Optional

Physical Characteristics

  • Height: 7"
  • Width: 5"
  • Depth: 15"
  • Weight (Approximate): 27 lb
  • Color: Gray

Interfaces/Ports

  • Serial Port: Yes

Other

  • Package Contents:
    • APC Smart UPS SC 620VA 120V
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
    • APC Smart UPS SC 620VA 120V
    • CD with software
    • Smart UPS signalling RS-232 cable
    • User Manual
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class B
    • NOM,
    • UL 1778
    • Meets UL 1449
  • Additional Information:
    • Units per Pallet: 40
    • Boost and Trim Automatic Voltage Regulation (AVR)
    • Adjustable voltage sensitivity
    • Adjustable voltage transfer points
    • Automatic self test
    • Cold start capable
    • Serial Connectivity
    • Safety agency approved

Controls/Indicators

  • Status Indicators:
    • LED status display with:
    • On Line
    • On Battery
    • Replace Battery
    • Overload indicators

Battery Information

  • Backup/Run Time (Half Load): 15.70 Minute
  • Backup/Run Time (Full Load): 5.50 Minute
  • Battery Characteristics: Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Power Description

  • Load Capacity (VA): 620 VA
  • Load Capacity (Watt): 390 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 412 J

Management

  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery

Environmental Conditions

  • Temperature: 113°F (45°C)
  • Thermal Dissipation: 70 BTU/h

Warranty

  • Limited Warranty: 2 Year
