Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information

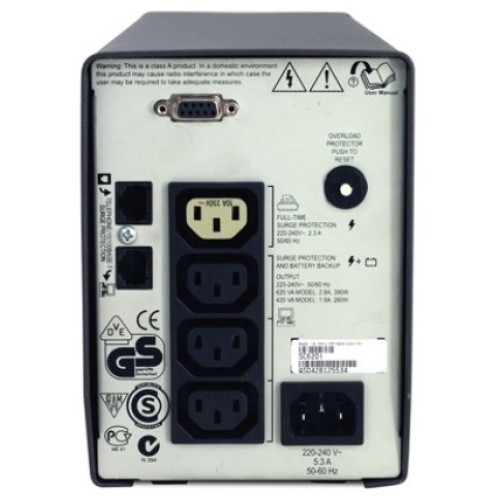

- Receptacles:
- 3 x IEC 320-C13
- 2 x IEC 320-C13
- 1
- Plug/Connector Type: IEC 320-C14
- Dataline Protection: RJ-45
General Information
- Product Type: Line-interactive UPS
- Product Series: SC
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

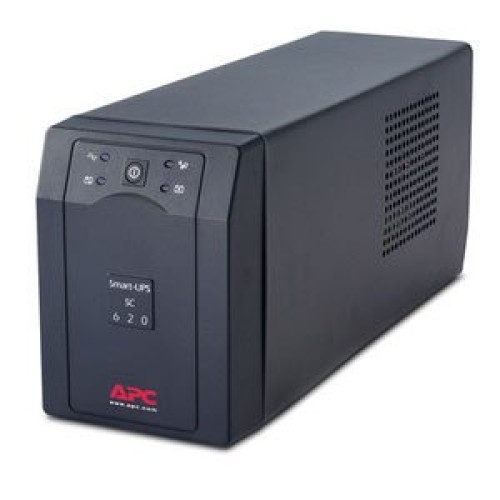

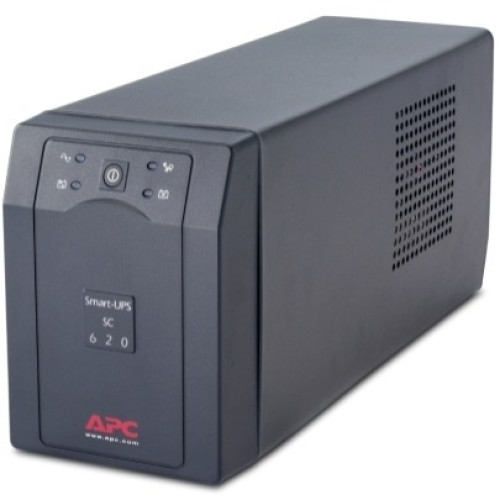

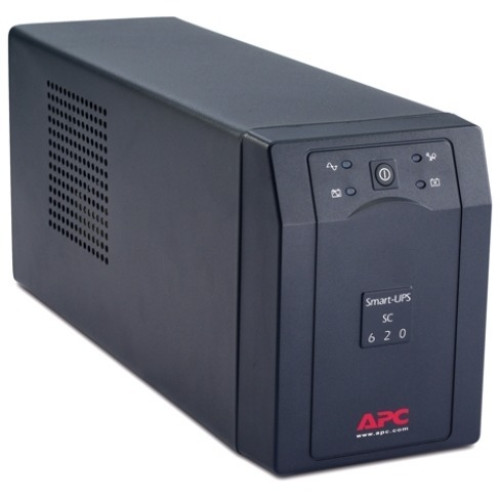

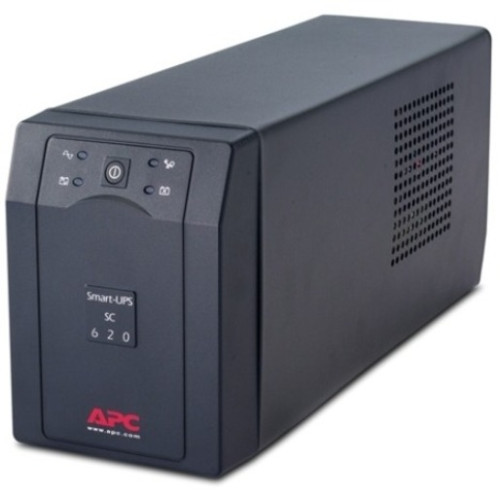

- Product Name: Smart-UPS SC 620VA
- Product Line: Smart-UPS
Physical Characteristics
- Height: 7"
- Width: 5"
- Depth: 15"
- Weight (Approximate): 27 lb
- Color: Gray
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS SC 620VA
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- Smart-UPS SC 620VA
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- Certifications & Standards:
- UL 1449
- CE
- EN 50091-1
- EN 50091-2
- GOST
- IEC 60950
- IRAM
- PCBC
- VCCI
- VDE
- Additional Information:
- Automatic self-test
- Automatic restart of loads after UPS shutdown
- Battery-protected and surge-only outlets
- Power conditioning
- Predictive failure notification
Battery Information
- Backup/Run Time (Half Load): 15.70 Minute
- Backup/Run Time (Full Load): 5.50 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 620 VA
- Load Capacity (Watt): 390 W
- Input Voltage: 220 V AC
- Output Voltage: 230 V AC
- Surge Energy Rating: 320 J
Management
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 70 BTU/h
Warranty
- Limited Warranty: 2 Year
