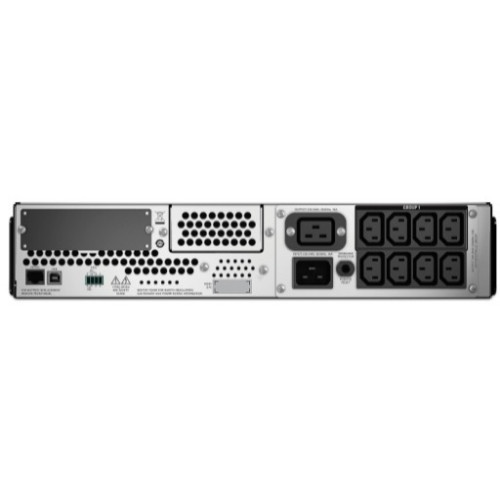

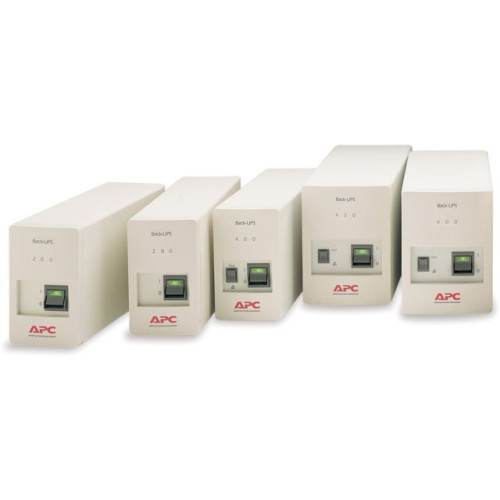

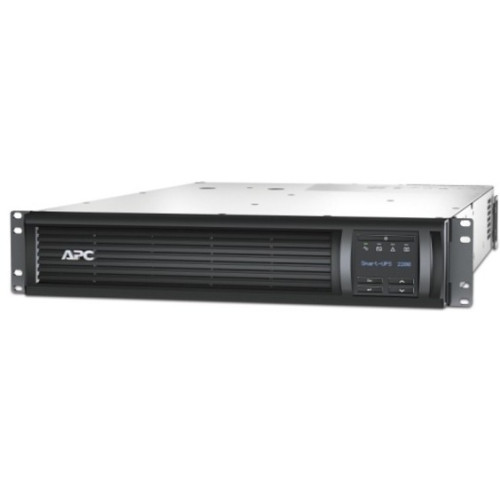

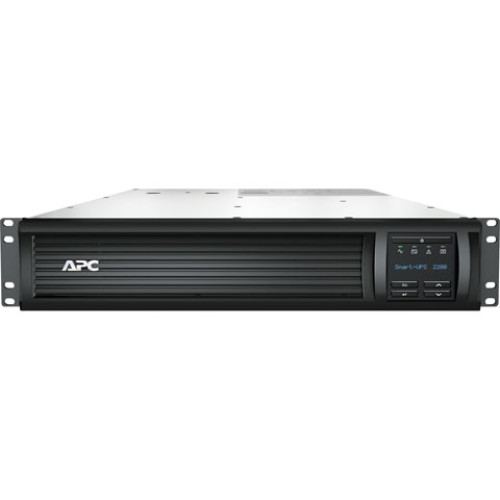

APC Back-UPS Series UPS
Part #: SMT2200RMI2U | SKU: APC140094

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS - Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Output

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SMT2200RMI2U
Product Name: Smart-UPS 2200VA Rack-mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 3.4"
Width: 18.9"
Depth: 26.9"
Form Factor: Rack-mountable
Weight (Approximate): 93.28 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 16 Minute
Backup/Run Time (Full Load): 5 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Power Description

Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1980 W
Output Voltage: 230 V AC

Extended Details

APC Back-UPS Series UPS Part #: SMT2200RMI2U | SKU: APC140094
