Additional Information
| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

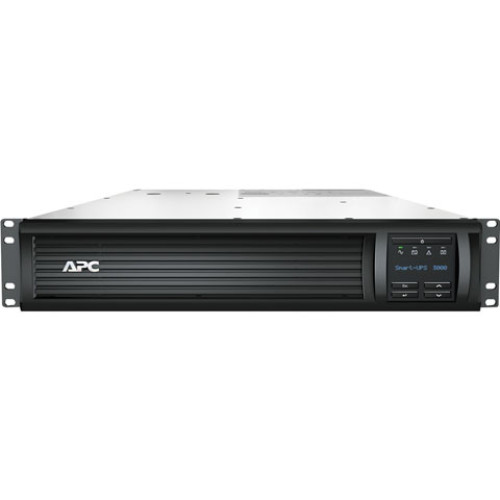

- Product Name: Smart UPS 3000VA LCD RM 2U 120V with 12FT Cord
- Product Line: Smart-UPS
Technical Information
- Receptacles:
- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
- Plug/Connector Type: NEMA L5-30P
- Bypass Switch: Automatic
Physical Characteristics
- Height: 3.4"
- Width: 18.9"
- Depth: 26.9"
- Rack Height: 2U
- Weight (Approximate): 97.42 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Smart UPS 3000VA LCD RM 2U 120V with 12FT Cord
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Rack Mounting Hardware
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Smart UPS 3000VA LCD RM 2U 120V with 12FT Cord
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Rack Mounting Hardware
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- REACH
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 11.70 Minute
- Backup/Run Time (Full Load): 3.40 Minute
- Battery Characteristics: Maintenance-free, Sealed
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Warranty
- Limited Warranty: 3 Year
