| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp
- Product Model: SMT3000RM2U

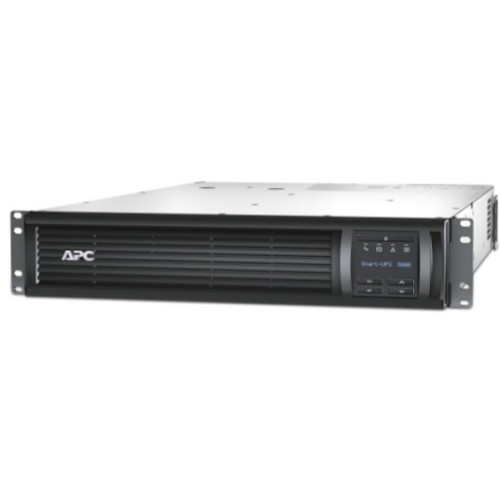

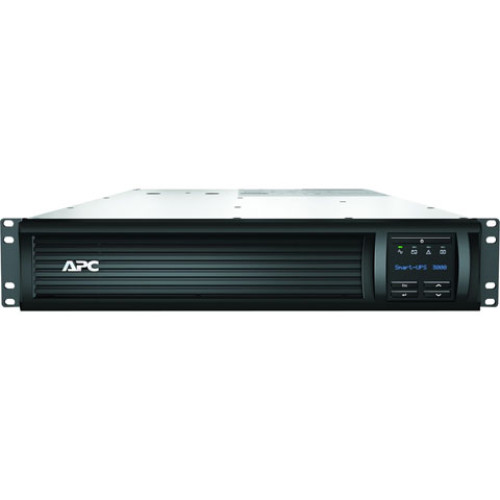

- Product Name: Smart-UPS SMT3000RM2U 3000VA Rack-mountable UPS
- Product Line: Smart-UPS
Technical Information
- Receptacles:
- 6 x NEMA 5-15R
- 2 x NEMA 5-20R
- Plug/Connector Type: NEMA L5-30P
Physical Characteristics
- Height: 3.4"
- Width: 18.9"
- Depth: 26.9"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 97.42 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Smart-UPS SMT3000RM2U 3000VA Rack-mountable UPS
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Smart-UPS SMT3000RM2U 3000VA Rack-mountable UPS
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Green Compliant: Yes
- Green Compliance Certificate/Authority: ENERGY STAR
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 12 Minute
- Backup/Run Time (Full Load): 3 Minute
- Battery Characteristics: Maintenance-free, Sealed, Spill-proof
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Warranty
- Limited Warranty: 3 Year
