Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 3 x NEMA 5-20R
- 6 x NEMA L5-20R
- 1 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-20P
- Emergency Power OFF: Yes
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

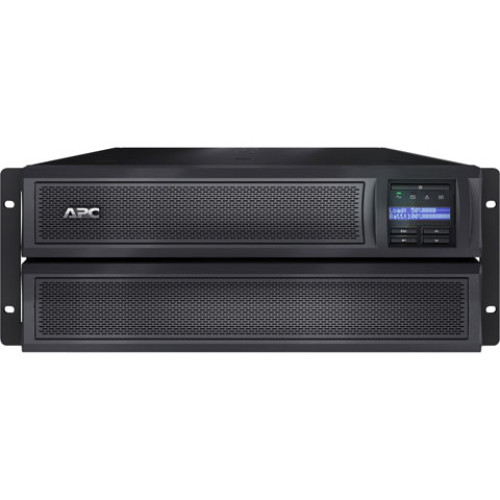

- Product Name: Smart-UPS X 2000VA Rack/Tower LCD 100-127V
- Product Line: Smart-UPS
Physical Characteristics
- Height: 17"
- Width: 7"
- Depth: 19"
- Rack Height: 2U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 85.19 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Smart-UPS X 2000VA Rack/Tower LCD 100-127V
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Smart-UPS X 2000VA Rack/Tower LCD 100-127V
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- REACH
- Certifications & Standards:
- BSMI
- CSA
- EN 50091-2
- EN 55022 Class A
- FCC Part 15 Class A
- NOM
- TUV
- UL 1778
- VCCI Class A
- UL 1449
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Number of Batteries: 1
- Backup/Run Time (Half Load): 28 Minute
- Backup/Run Time (Full Load): 11 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 1920 VA
- Load Capacity (Watt): 1800 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Warranty
- Limited Warranty: 3 Year
