APC Back-UPS Series Accessory
Part #: SMX3000RMLV2UNC | SKU: APC111335

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

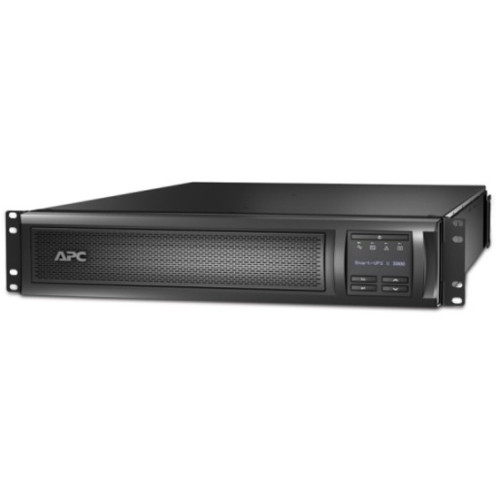

Part Details: APC by Schneider Electric Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $5,075.00 Price: $4,264.82

In Stock

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Line-interactive UPS
Product Series: X
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SMX3000RMLV2UNC
Product Name: Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
Product Line: Smart-UPS

Technical Information

Receptacles:
- 3 x NEMA 5-15R
- 3 x NEMA 5-20R
- 1 x NEMA L5-30R
Plug/Connector Type: NEMA L5-30P
Emergency Power OFF: Yes

Physical Characteristics

Height: 3.3"
Width: 17"
Depth: 26.3"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 84.77 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes

Other

Package Contents:
- Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Web/SNMP Management Card
- Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Web/SNMP Management Card
Green Compliant: Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
Certifications & Standards:
- UL 1449
- BSMI
- CSA
- EN 50091-2
- EN 55022 Class A
- FCC Part 15 Class A
- NOM
- TUV
- UL 1778
- VCCI Class A

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 18 Minute
Backup/Run Time (Full Load): 6 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Lead Acid
Hot Swappable: Yes

Power Description

Load Capacity (VA): 3000 VA
Load Capacity (Watt): 2700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable

Warranty

Limited Warranty: 3 Year

Extended Details

APC Back-UPS Series Accessory Part #: SMX3000RMLV2UNC | SKU: APC111335
