| Manufacturer | APC |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

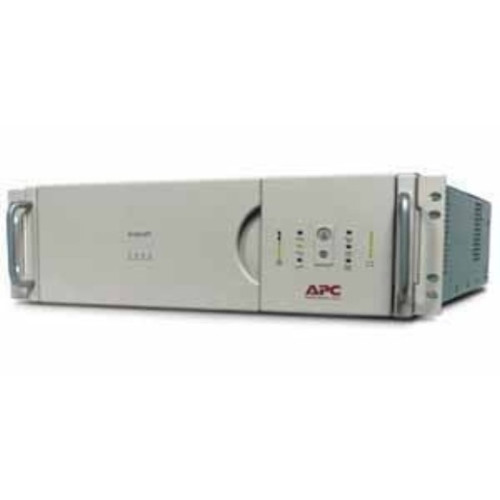

- Product Name: Smart-UPS 2200VA RM
- Product Line: Smart-UPS
Technical Information
- Receptacles: 6 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-20P
- Cord Length: 6 ft
- Emergency Power OFF: Optional
Physical Characteristics
- Height: 5.2"
- Width: 19"
- Depth: 25"
- Rack Height: 3U
- Weight (Approximate): 103 lb
- Color: Beige
Interfaces/Ports
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- User Manual
- Country-specific detachable power cord
- Smart UPS signalling RS-232 cable
- CD with software
- User Manual
- Country-specific detachable power cord
- Smart UPS signalling RS-232 cable
- CD with software
- Certifications & Standards:
- CSA
- FCC A
- UL 1778
- Additional Information:
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Overload Indicator
- Replace Batt Indicator
- Software
- User Replaceable batteries
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 24.50 Minute
- Backup/Run Time (Full Load): 6.80 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 2200 VA
- Power Consumption: 1600 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 480 J
- Waveform Type: Sine Wave
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 275 BTU/h
- Sound Emission: 47 dB(A)
Warranty
- Limited Warranty: 2 Year
Controls/Indicators
- Status Indicators: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
