Additional Information
| Manufacturer AIDC | APC |
|---|---|

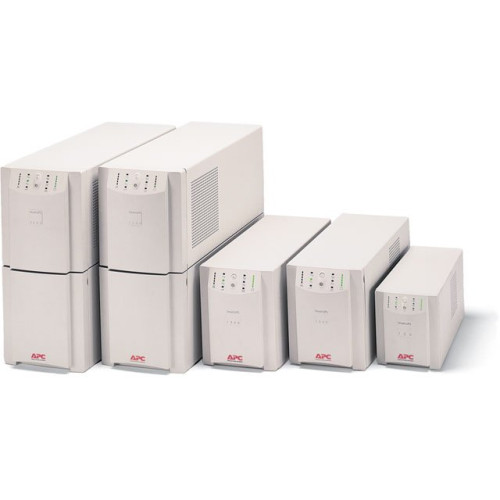

| Model Name | Smart-UPS Series |
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

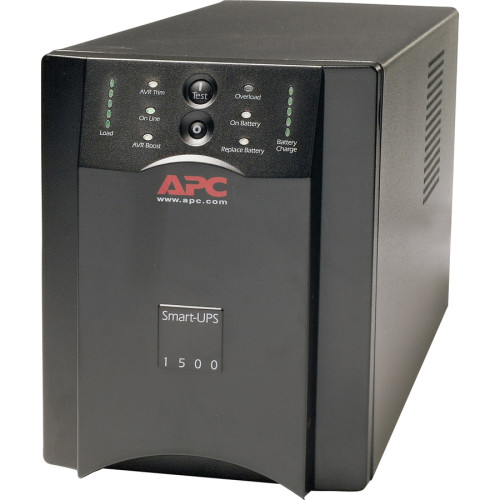

- Product Name: Smart-UPS 1500VA
- Product Line: Smart-UPS
Technical Information
- Receptacles: 8 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Cord Length: 6 ft
- Emergency Power OFF: Yes
Physical Characteristics
- Height: 8.5"
- Width: 6.7"
- Depth: 17.3"
- Weight (Approximate): 53 lb
- Color: Black
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
- Certifications & Standards:
- BSMI
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
- Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Load Meter
- Network-grade line conditioning
- Overload Indicator
- Replace Batt Indicator
- Software
- User Replaceable batteries
- Units per Pallet: 24.0
Power Description
- Load Capacity (VA): 1440 VA
- Power Consumption: 980 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 459 J
- Waveform Type: Sine Wave
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 23.90 Minute
- Backup/Run Time (Full Load): 6.70 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 135 BTU/h
- Sound Emission: 45 dB(A)
Management
- Alarm:
- On Battery
- Low Battery
Controls/Indicators
- Status Indicators: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Warranty
- Limited Warranty: 2 Year
