| Manufacturer | APC |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Online UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

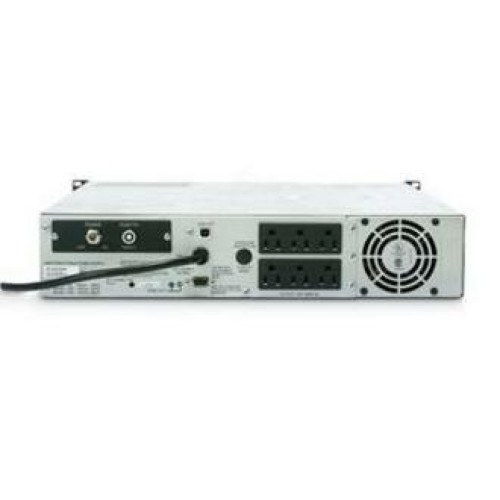

- Product Name: Smart -UPS 1500VA RM
- Product Line: Smart-UPS
Technical Information
- Receptacles: 6 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Cord Length: 8 ft
Physical Characteristics
- Height: 3.5"
- Width: 19"
- Depth: 18"
- Rack Height: 2U
- Weight (Approximate): 63 lb
- Color: Black
Interfaces/Ports
- Serial Port: Yes
Other
- Package Contents:
- CD with software (PowerChute Smart-UPS Bundle)
- Installation Guide
- Smart UPS signalling RS-232 cable
- Smart-UPS
- CD with software (PowerChute Smart-UPS Bundle)
- Installation Guide
- Smart UPS signalling RS-232 cable
- Smart-UPS
- Certifications & Standards:
- UL 1778
- UL 1449
- Additional Information: Compatibility: Mac, PC
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 980 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Surge Energy Rating: 459 J
- Waveform Type: Sine Wave
Management
- Alarm:
- On Battery
- Low Battery
- Overload
Battery Information
- Backup/Run Time (Half Load): 26.50 Minute
- Backup/Run Time (Full Load): 7.40 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 171 BTU/h
Controls/Indicators
- Status Indicators: LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.
Warranty
- Limited Warranty: 2 Year
