APC Smart-UPS Series UPS
Part #: SUA2200RM2U | SKU: APC24309

The Smart-UPS Series lets you keep your data safe even when you're not there! The PowerChute plus software and the uninterruptible power supply (UPS) allow for your data to be properly saved and then your network operation system to be shut before the battery is discharged. A proactive defense against data loss.

APC Smart-UPS Series UPS

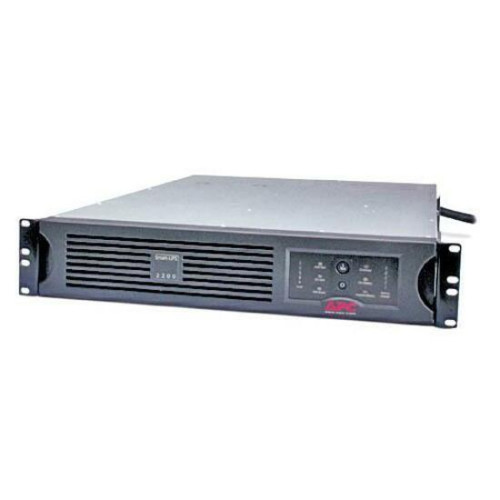

Part Details: Smart-UPS 2200VA USB & Serial RM 2U 120V

Need a different version of the APC Smart-UPS Series Accessory? View all 33 configurations

Additional Information

Manufacturer AIDC	APC
Model Name	Smart-UPS Series

Technical Information

Receptacles:
- 6 x NEMA 5-15R
- 2 x NEMA 5-20R
Plug/Connector Type: NEMA 5-20P
Cord Length: 8 ft
Emergency Power OFF: Yes

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 2200VA
Product Line: Smart-UPS

Physical Characteristics

Height: 3.5"
Width: 19"
Depth: 26"
Rack Height: 2U
Weight (Approximate): 96 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- CD with software (PowerChute Smart-UPS Bundle)
- Country-specific detachable power cord
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- CD with software (PowerChute Smart-UPS Bundle)
- Country-specific detachable power cord
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Certifications & Standards:
- BSMI
- CSA
- UL 1778
- FCC Part 15 Class A
- UL 1449
Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Lightning and Surge Protection
- Load Meter
- Network-grade line conditioning
- Wide input voltage range

Power Description

Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1980 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 480 J
Waveform Type: Sine Wave

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 15.70 Minute
Backup/Run Time (Full Load): 5.20 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 300 BTU/h

Controls/Indicators

Status Indicators: LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.

Warranty

Limited Warranty: 2 Year

Extended Details

APC Smart-UPS Series UPS Part #: SUA2200RM2U | SKU: APC24309
