Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Line-interactive UPS
- Product Series: XL
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

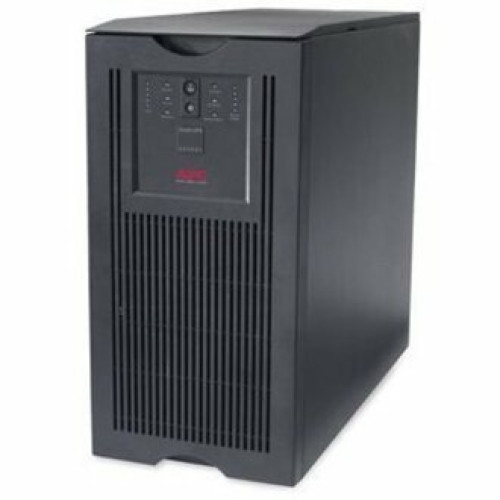

- Product Name: Smart-UPS XL 2200VA Tower/Rack-mountable UPS
- Product Line: Smart-UPS
Technical Information
- Receptacles:
- 9 x NEMA 5-20R
- 2 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-20P
- Emergency Power OFF: Optional
Physical Characteristics
- Height: 17.5"
- Width: 8.7"
- Depth: 19.5"
- Rack Height: 5U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 121 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS XL 2200VA Tower/Rack-mountable UPS
- CD with software
- Smart UPS signalling RS-232 cable
- Temperature Probe
- USB cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS XL 2200VA Tower/Rack-mountable UPS
- CD with software
- Smart UPS signalling RS-232 cable
- Temperature Probe
- USB cable
- User Manual
- Web/SNMP Management Card
- Certifications & Standards:
- UL 1449
- CSA
- FCC Part 15 Class A
- UL 1778
- UL
- FCC
- CE
- C-Tick
- Software Included: PowerChute Management Software
- Additional Information: Max Configurable Power: 1980 Watts / 2200 VA
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Number of Batteries: 1
- Backup/Run Time (Half Load): 28.50 Minute
- Backup/Run Time (Full Load): 10.40 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Power Description
- Load Capacity (VA): 2200 VA
- Load Capacity (Watt): 1850 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Management
- Network Management: SNMP Manageable
Warranty
- Limited Warranty: 2 Year
