Additional Information
| Manufacturer AIDC | APC |
|---|---|

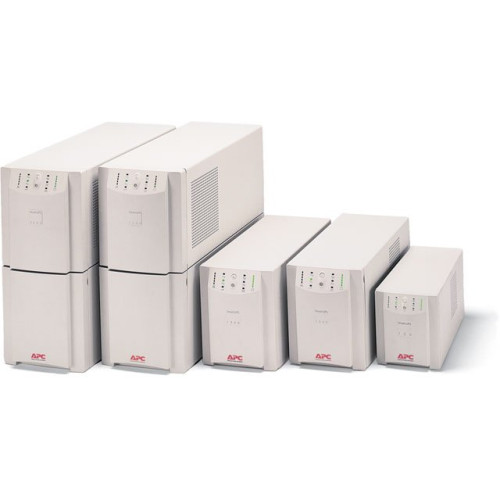

| Model Name | Smart-UPS Series |
Technical Information
- Receptacles:
- 2 x NEMA 5-15R
- 8 x NEMA 5-20R
- Plug/Connector Type: NEMA L5-30P
- Cord Length: 6 ft
- Emergency Power OFF: Yes
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

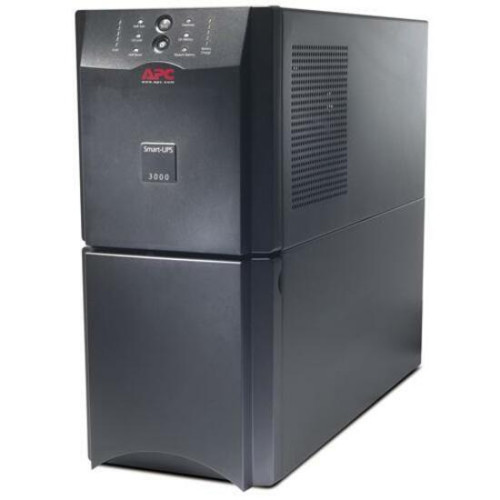

- Product Name: Smart-UPS 3000VA
- Product Line: Smart-UPS
Physical Characteristics
- Height: 17"
- Width: 8"
- Depth: 22"
- Form Factor: Tower
- Weight (Approximate): 116 lb
- Color: Black
Interfaces/Ports
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Smart-UPS 3000VA
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Smart-UPS 3000VA
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
- Additional Information:
- Output Voltage Distortion: less than 5% at full load
- Crest Factor: up to 5 : 1
- Replacement battery cartridge Quantity: 1
- Boost and Trim Automatic Voltage Regulation (AVR)
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Circuit Breaker: Yes
- Surge Energy Rating: 459 J
- Waveform Type: Sine Wave
Controls/Indicators
- Status Indicators:
- LED status display:
- load and battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
Battery Information
- Backup/Run Time (Half Load): 13.60 Minute
- Backup/Run Time (Full Load): 5.50 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Management
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 275 BTU/h
Warranty
- Limited Warranty: 2 Year
