| Manufacturer AIDC | APC |
|---|---|
| Model Name | Replacement Batteries |
General Information
- Product Type: Line-interactive UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

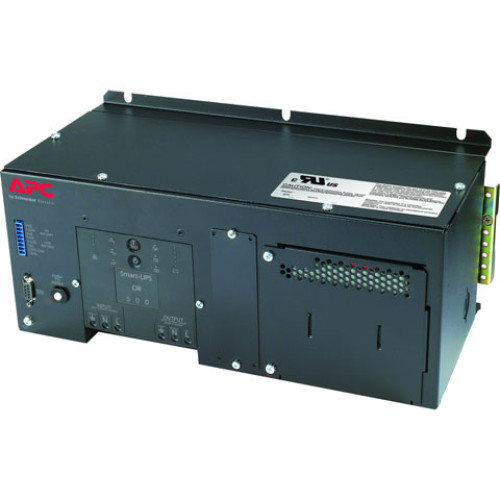

- Product Name: Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
Technical Information
- Receptacles: 1 x Hard Wire 3-wire (H N + G)
- Plug/Connector Type: Hard Wire 3 wire (1PH+N+G)
- Emergency Power OFF: Yes
Physical Characteristics
- Height: 5.8"
- Width: 14.2"
- Depth: 6.7"
- Weight (Approximate): 28.30 lb
Interfaces/Ports
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
- CD with Software
- Documentation CD
- Installation Guide
- Smart UPS Signalling RS-232 Cable
- Wall-Mounting Template
- 1 x Battery Module
- Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
- CD with Software
- Documentation CD
- Installation Guide
- Smart UPS Signalling RS-232 Cable
- Wall-Mounting Template
- 1 x Battery Module
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- REACH
- Certifications & Standards: UL 1449
Battery Information
- Maximum Battery Recharge Time: 2.50 Hour
- Backup/Run Time (Half Load): 24 Minute
- Backup/Run Time (Full Load): 8 Minute
- Battery Characteristics: Maintenance-free, Sealed
- Battery Chemistry: Lead Acid
Power Description
- Load Capacity (VA): 500 VA
- Load Capacity (Watt): 325 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Warranty
- Limited Warranty: 2 Year
