APC Back-UPS Series UPS
Part #: SUA750RMI1U | SKU: APC125670

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: APC Smart-UPS 750VA - 750VA - 7.1 Minute Full Load - 4 x IEC 320-C13, 2

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $1,200.00 Price: $909.68

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp

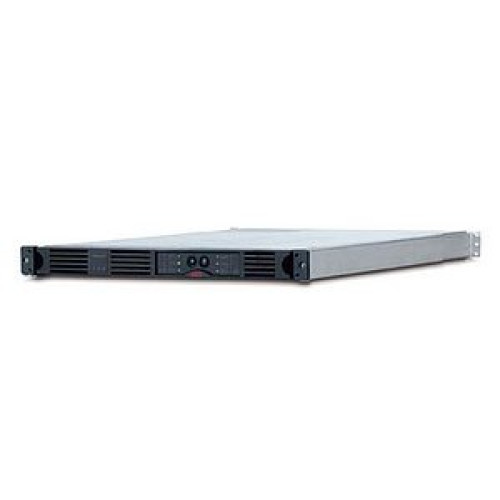

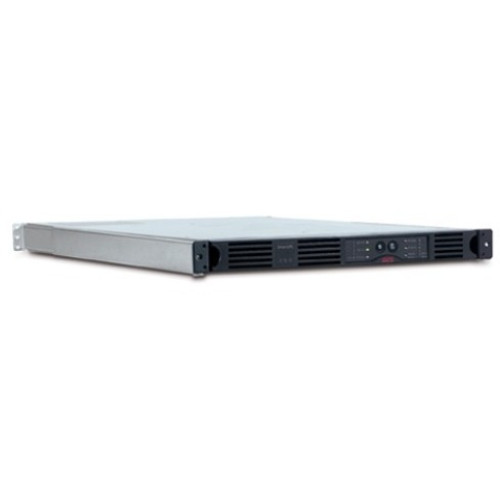

Product Name: Smart-UPS 750VA
Product Line: Smart-UPS

Technical Information

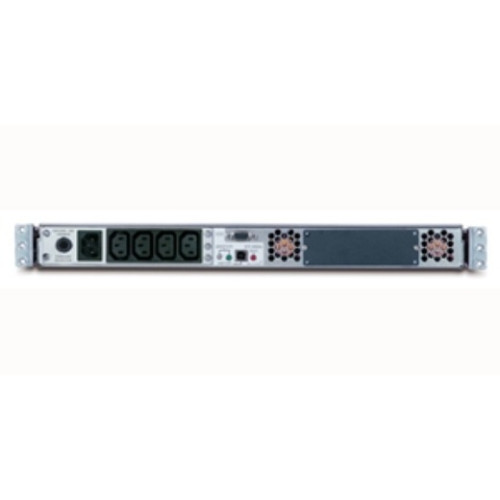

Receptacles:
- 2 x IEC 320-C13
- 4
Plug/Connector Type: IEC 320-C14

Physical Characteristics

Height: 1.7"
Width: 17"
Depth: 26"
Rack Height: 1U
Weight (Approximate): 48 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- CD with software (PowerChute Smart-UPS Bundle)
- Country-specific detachable power cord
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
- Smart UPS
- CD with software (PowerChute Smart-UPS Bundle)
- Country-specific detachable power cord
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
- Smart UPS
Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- PCBC
- VDE
- UL 1449
Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Load Meter
- Network-grade line conditioning
- Wide input voltage range

Power Description

Load Capacity (VA): 750 VA
Power Consumption: 480 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC
Surge Energy Rating: 480 J
Waveform Type: Sine Wave

Battery Information

Maximum Battery Recharge Time: 2 Hour
Backup/Run Time (Half Load): 23.60 Minute
Backup/Run Time (Full Load): 7.10 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 130 BTU/h
Sound Emission: 45 dB(A)

Controls/Indicators

Status Indicators: LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.

Warranty

Limited Warranty: 2 Year

Extended Details

APC Back-UPS Series UPS Part #: SUA750RMI1U | SKU: APC125670
