| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 8 x IEC 320-C13
- 2
- Plug/Connector Type: IEC 320-C14
- Cord Length: 6 ft
- Emergency Power OFF: Optional
General Information
- Product Type: Line-interactive UPS
- Product Series: XL
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

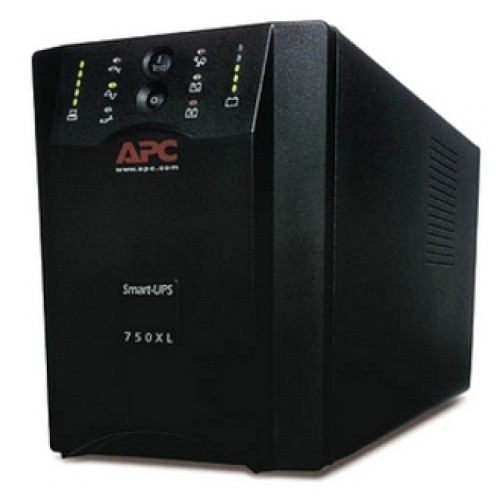

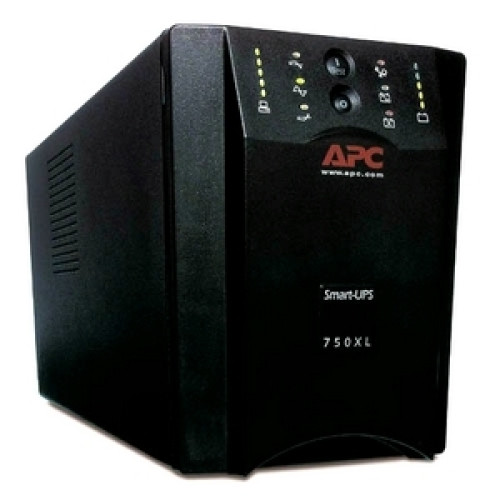

- Product Name: Smart-UPS XL 750VA
- Product Line: Smart-UPS
Physical Characteristics
- Height: 8.5"
- Width: 6.7"
- Depth: 17.3"
- Weight (Approximate): 53 lb
- Color: Black
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- PCBC
- VDE
- UL 1449
- Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Built-in SmartSlot
- Load Meter, Network-grade line conditioning
- Scalable Run Time
- USB Connectivity
- Wide input voltage range
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 220 V AC
- Output Voltage: 230 V AC
- Surge Energy Rating: 320 J
- Waveform Type: Sine Wave
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 51.80 Minute
- Backup/Run Time (Full Load): 16.90 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Management
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 100 BTU/h
- Sound Emission: 42 dB(A)
Controls/Indicators
- Status Indicators: LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, and Overload Indicators.
Warranty
- Limited Warranty: 2 Year
