| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information

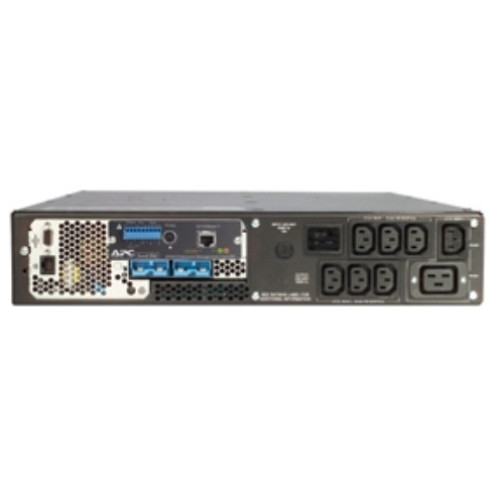

- Receptacles:
- 7 x IEC 320-C19
- 1 x IEC 320-C13
- 4
- Plug/Connector Type: IEC 320-C20
- Cord Length: 10 ft
- Bypass Switch: Automatic & Manual
- Emergency Power OFF: Optional
General Information
- Product Type: Line-interactive UPS
- Product Series: XL
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

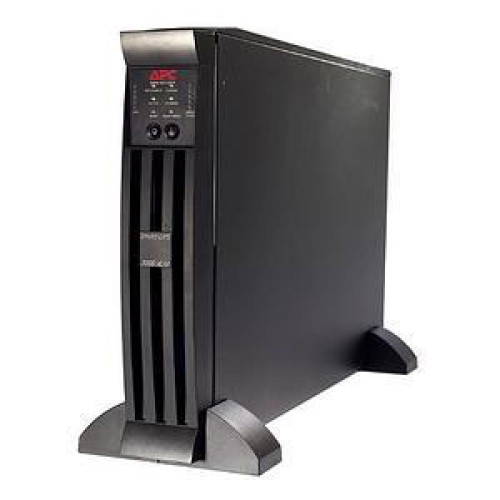

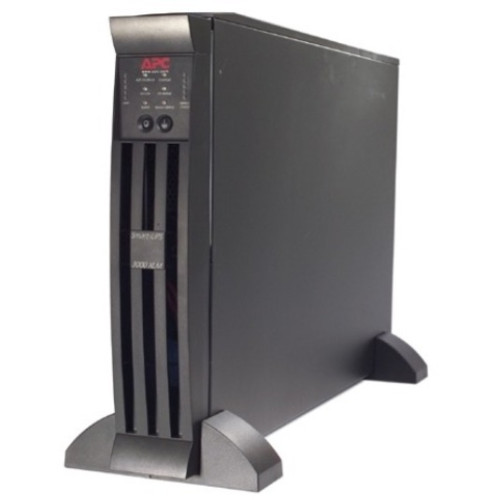

- Product Name: Smart-UPS XL 3000VA Rack Mountable/Tower
- Product Line: Smart-UPS
Physical Characteristics
- Height: 3.4"
- Width: 17"
- Depth: 26.7"
- Rack Height: 2U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 103 lb
- Color: Black
Interfaces/Ports
- USB: Yes
- Network (RJ-45): Yes
- Serial Port: Yes
Other
- Package Contents:
- Smart-UPS XL 3000VA Rack Mountable/Tower
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB Cable
- User Manual
- Smart-UPS XL 3000VA Rack Mountable/Tower
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB Cable
- User Manual
- Certifications & Standards:
- C-tick
- CE
- EN 50091-2
- EN 55022 Class A
- EN 61000-3-2
- GOST
- UL 1449
- Additional Information:
- Replacement battery cartridge: 1
- Battery Modules Shipped with Unit: 1
- Efficiency at full load: 89%
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: up to 5:1
- Units per Pallet: 8
- Adjustable voltage sensitivity
- Adjustable voltage-transfer points
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Disconnected battery notification
- Generator compatible
- Scalable runtime
Controls/Indicators
- Status Indicators:
- Load Bar-graphs
- Battery Bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2850 W
- Input Voltage: 220 V AC
- Output Voltage: 240 V AC
- Surge Energy Rating: 490 J
- Waveform Type: Sine Wave
Management
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Battery Information
- Backup/Run Time (Half Load): 11.90 Minute
- Backup/Run Time (Full Load): 3.50 Minute
- Battery Chemistry: Valve-regulated Lead Acid (VRLA)
- Hot Swappable: Yes
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 300 BTU/h
Warranty
- Limited Warranty: 2 Year
